Single-line tab > Frames and sheets group >  Handle sheets menu > Add sheets of selected drawings to this drawing |
| Distribution Board tab > Frames and sheets group > Handle sheets menu > Add sheets of selected drawings to this drawing |
| Schematics tab > Frames and sheets group > Handle sheets menu > Add sheets of selected drawings to this drawing |
| Cabinet Layout tab > Frames and sheets group > Handle sheets menu > Add sheets of selected drawings to this drawing |
With this function, you can import all sheets from the selected drawing files to the current drawing. The sheets are added after the existing sheets, and all the drawing sheets will be renumbered consecutively.
Do the following:
-
Select the drawings from which you want to import sheets to the current drawing.
Note: When selecting several drawing files, the drawing sheets will be added according to their names in alphabetical order. If this is not the suitable order, add drawings one by one in the desired order.

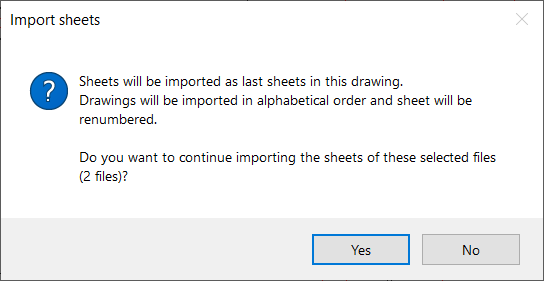

The Import sheets dialog opens.
-
Confirm adding by clicking Yes. The Edit values for copied objects dialog opens.
-
If necessary, edit the attribute values and click OK. The Update sheets / date dialog opens.
-
Change the information if necessary, and click OK.
