Wire markings, jumper bars

Electrical tab > Projects group > Settings >

(Project settings)

Electrical tab > Settings group > Electrical menu > Project settings

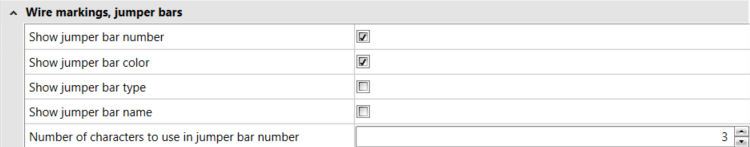

In the Wire markings, jumper bars section, define the information shown for jumper bar markings.

Show jumper bar number – Define whether to show the jumper bar numbers in the drawing when marking jumper bars.
Show jumper bar color – Define whether to show the jumper bar colors in the drawing when marking jumper bars. Color will be displayed by project language.
Show jumper bar type – Define whether to show jumper bar types in the drawing when marking jumper bars. You can enter the type in Electrical DB, or when drawing the jumper bar.
Show jumper bar name – Define whether to show the jumper bar names in the drawing when marking jumper bars. You can enter the name in Electrical DB, or when drawing the jumper bar.
Number of characters to use in jumper bar number – Define the number of digits shown in the jumper bar mark. If the value is 1, the number is shown completely but no zeros are added before.

E.g. Bar number 26
