Fill drawing labels

	Electrical tab > Frames and labels group > Fill
	Layout tab > Frames and sheets group > Fill
	Single-line tab > Frames and sheets group > (Edit frame/label information)
	Distribution Board tab > Frames and sheets group > (Edit frame/label information)
	Schematics tab > Frames and sheets group > (Edit frame/label information)
	Cabinet Layout tab > Frames and sheets group > (Edit frame/label information)

With the sheet management tool, you can add, remove and edit sheets in schema drawings and edit the drawing frame information.

Open the information for viewing and editing by clicking the desired row's plus sign.

You can select multiple sheets by holding down Shift or Ctrl.

Electrical schema sheets

Copy and Paste – You can copy sheets to the clipboard with all their data. With Paste, you can add the sheets from the clipboard with their original sheet numbers. If a sheet number is already in use, the sheet will be added to the end.
Remove – Delete the selected sheet.
Reorder – Add order numbers according to the current order of the sheet list and update the total number of sheets.
Add new sheet – Add a new sheet to the end. The sheet can be moved to the desired location by changing the sheet number: right-click and select Consecutive numbering.

Copy and Paste – Copy information from the drawing frame to the clipboard. With Paste, add information from the clipboard to the selected sheet's drawing frame.
Paste to same – Paste information to the selected sheet, to the same columns that you selected during copying.

Change the order by giving a new order number for a sheet.
Expand detailed information on opening – Will the detailed information of the sheet be opened on dialog open.
Organize the sheets by clicking the column headers.
Filter the sheets by clicking the funnel icon in the column header.

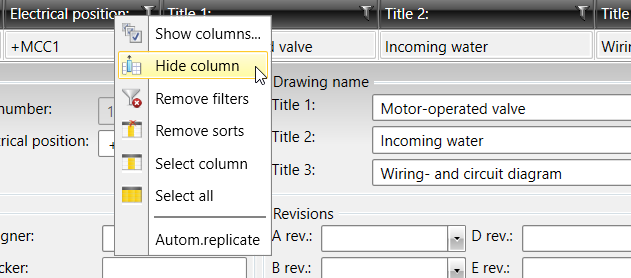

Right-click on the header row to find additional functions:

Show columns – Select columns visible in grid.
Hide column – Hide currently selected column. You can make it visible again with Show columns.
Remove filters and Remove sorts – Remove any filters applied to the grid / return sorting to default (sheet number).
Select column – Select all cells in the column.
Select all – Select all cells in the grid.
Autom.replicate – When enabled, the value inserted into the cell will be copied to every row (sheet) in that column.

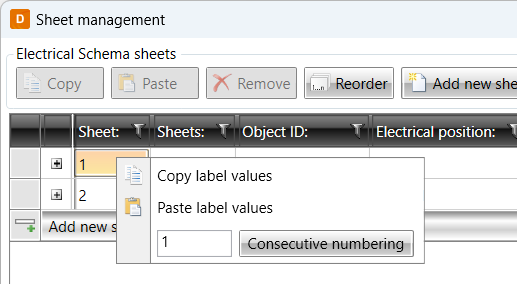

In the Sheet column, right-click a cell to find the Consecutive numbering function. With it, you can give the sheet a specific sheet number and increase the sheet number of the following sheets if necessary.

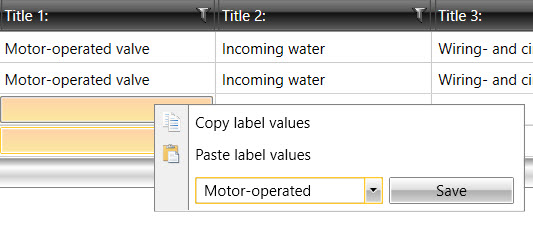

Add the same value to several cells at once: select the cells, right-click, enter the value in the empty field, and click Save:

Tip: Sheet copy and paste work also between drawings.
