Cable types

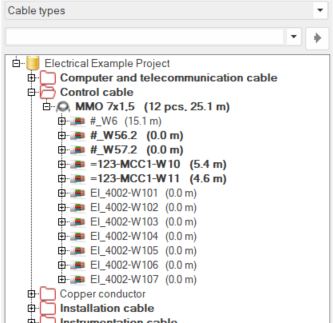

The Cable types tree shows the cable types used in the project as well as a summary of cables using each type, with total amount and length. The individual cables are listed below cable types.

Functions for the tree items are available in the right-click menu. The menu contents depend on the selected item.

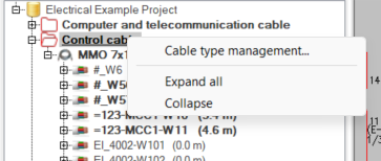

• Cable group:

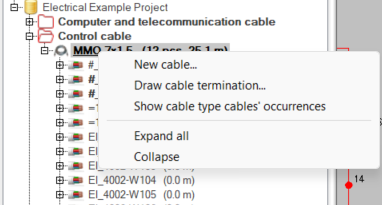

• Cable type:

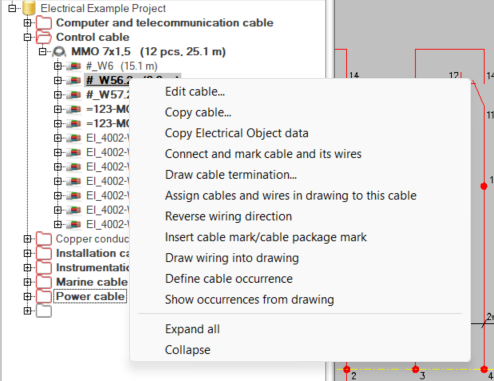

• Cable:
