Create the next sheet

The first sheet (SLEHTI1) is now ready, and we can continue by drawing the second sheet (SLEHTI2). We will also copy label information from the first sheet to the second.

Do the following:

Select Schematics tab > Frames and sheets group > (Create new sheet).

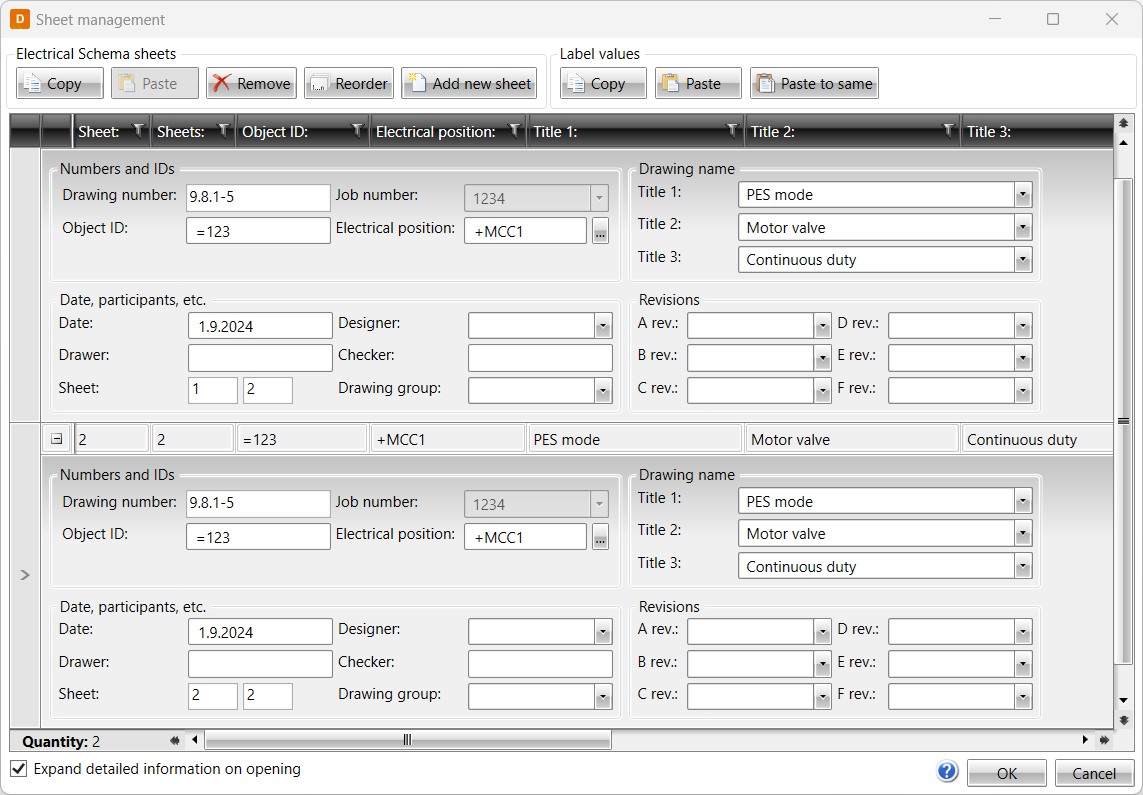

Still in the Frames and sheets group, click the (Edit frame/label information) button. The Sheet management dialog opens.
Select the whole Sheet 1 row.
In the Label values section, click Copy.
Select the whole Sheet 2 row.
In the Label values section, click Paste.
Click OK.
