With the Define cable package occurrence function available in the Wirings project tree, you can define a line in a drawing as an occurrence of a cable package already defined in the project.
Do the following:
-
In the project tree, select Wirings.
-
Select the desired cable package.
-

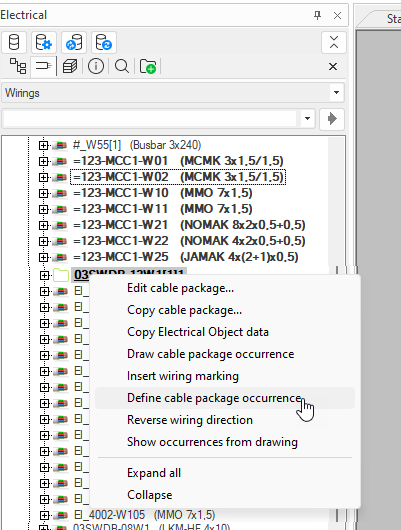

Right-click, and select Define cable package occurrence.
-
Select a line or a polyline in the drawing that you want to define as an occurrence of the cable package.
If the start and end points of the line differ from the from/to data of the cable package, the program asks you to confirm the information.
-
Click Yes. The program defines the line as an occurrence of the cable package.
