Generate space objects to 3D model

Spaces tab > Add group > Update menu > Generate space objects to 3D model

With this function, you can generate a 3D model of the space object.

The walls and openings are generated into a 3D model according to the space object data.

Do the following:

Select the space objects that you want to present in 3D.

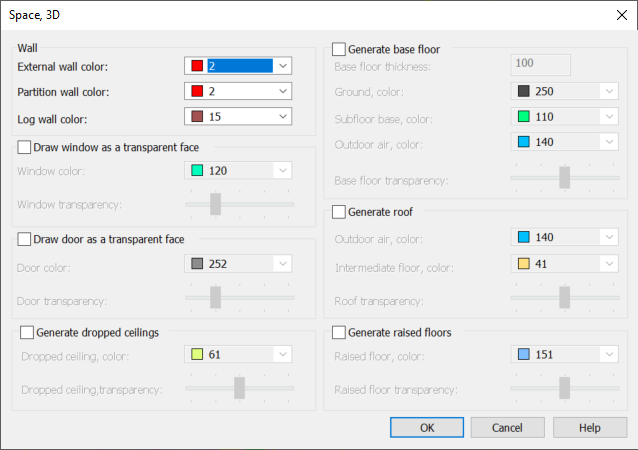

Press Enter or right-click. The Space, 3D dialog opens.
Select an external wall color.
Select a partition wall color.
Select a log wall color.
If you want to draw windows in the 3D model, do the following:
1. Select Draw window as a transparent face.
2. Select the color.
3. Select the transparency (0 = no transparency, 100 = full transparency).
If you want to draw doors in the 3D model, do the following:
1. Select Draw door as a transparent face.
2. Select the color.
3. Select the transparency (0 = no transparency, 100 = full transparency).
If you want to generate dropped ceilings in the 3d model, do the following:
1. Select Generate dropped ceilings .
2. Select the color.
3. Select the transparency (0 = no transparency, 100 = full transparency).
If you want to generate base floors in the 3D model, do the following:
1. Select Generate base floor.
2. Enter the thickness for the base floor. If you enter 0 as the value, only a 3D face is drawn.
3. Select the colors for the different types of floor.
4. Select the transparency (0 = no transparency, 100 = full transparency).
Floors are not generated between stories if a floor is set to Intermediate floor to prevent unnecessary overlapping structures.
If you want to generate roofs in the 3D model, do the following:
1. Select Generate roof.
2. Select the colors for different types of roofs.
3. Select the transparency (0 = no transparency, 100 = full transparency).
If you want to generate raised roofs, do the following:
1. Select Generate raised roofs.
2. Select the color.
3. Select the transparency (0 = no transparency, 100 = full transparency).
Click OK.

Settings of the setting file used for the function

3D-model, S_TILA3D
