Edit report template

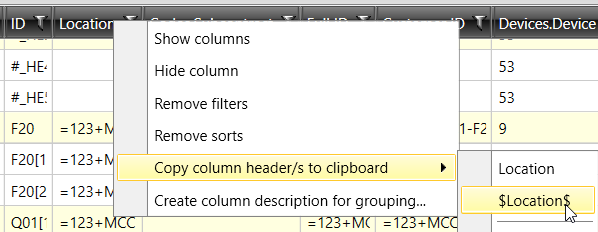

Let's edit the template used. You can easily copy the linkable data from the reporting tool grid headers:

Do the following:

1. Go to C:\ProgramData\CADMATIC\Draw [version number] English\Electrical\DB\ReportFiles where standard templates are located in.

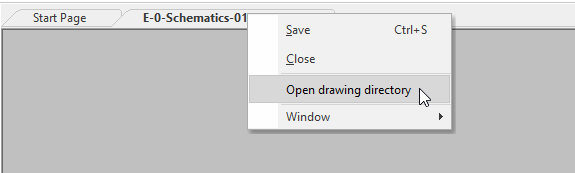

2. Copy the template SumListOfDevices.xls into the drawing directory …\Templates\ReportFiles. You can open the project directory by right-clicking the drawing tab:

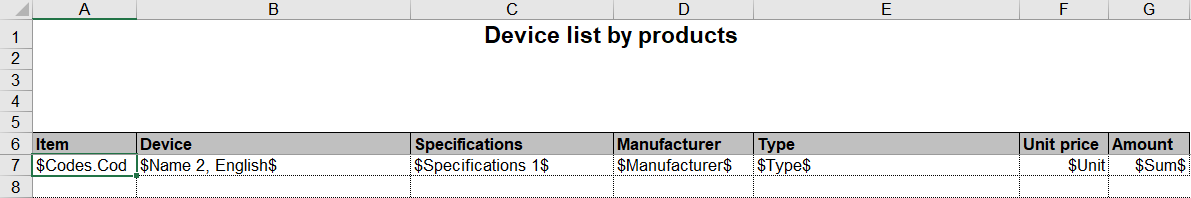

3. Open the template after copying it.



To construct templates:

• You can use free text or pictures above the links.

• You can add project data to the header:

  • The $P:xxx$ format searches for project information. The available values are:

    • Project name – $P:Name$

    • Project description – $P:Project description$

    • Target data 1-6 – $P:Target [n]$ ([n]=number of target data)

    • Job number – $P:Job Number$

    • Customer number – $P:Customer Number$

    • District – $P:District$

    • Block – $P:Block$

    • Site – $P:Site$

  • The $H:xxx$ format searches for the first value from the grid. For example, with device list with only =123+MCC1 location filtered $H:Location$ will print value =123+MCC1 ones.

  • The $xxx$ format finds the selected value for each row. For example, $Manufacturer$ will print device manufacturer information to each row.

• Column headers are just basic text. Links are given below them.

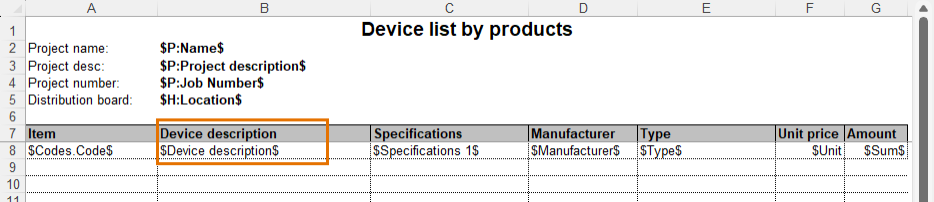

4. Construct the template:

   1. Add Project name, Project description and Job number to the header.



   2. Add Location information to the header.

   3. Remove header Device and its link $Name 2, English$. Instead, add Device description and link under it $Device description$.



5. Save the template and rename it as Product calculations.xls.

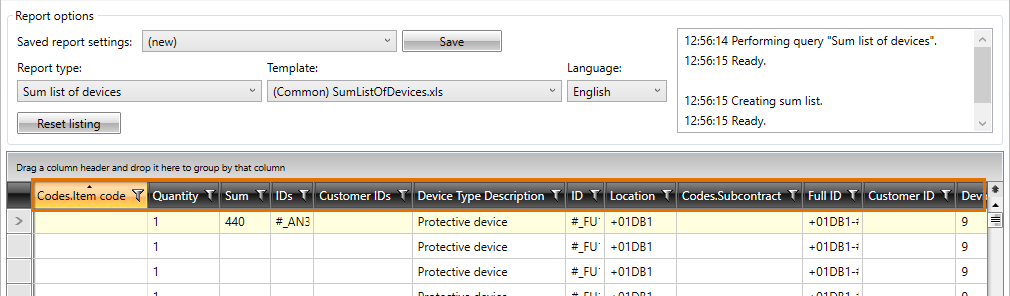

6. Rerun the report tool with the same settings as previously but use this new template instead. The new template is found with a name (Project) Product calculations.xls at the top of the list.
