Layout tab > Devices group >
Symbol functions menu >
Heaters menu > Heating radiators
With this function, you can define a heating radiator to the drawing. The function creates a symbol to the drawing in accordance with the definitions.
Do the following:
-

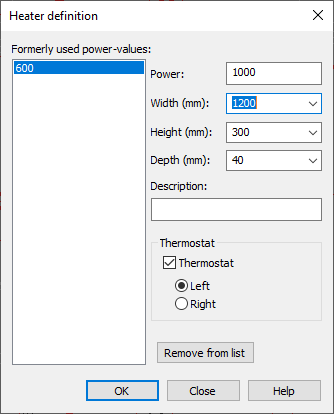

Define the power and size and optionally a description for the heater.
-
Select whether to include a thermostat. The location can be either left or right looking from inside the room.
-
Click OK.
-
Indicate the position of the heater in the drawing.
The defined heaters will be saved in the list, where they will be available at a later stage. The heaters will be listed according to their power.
