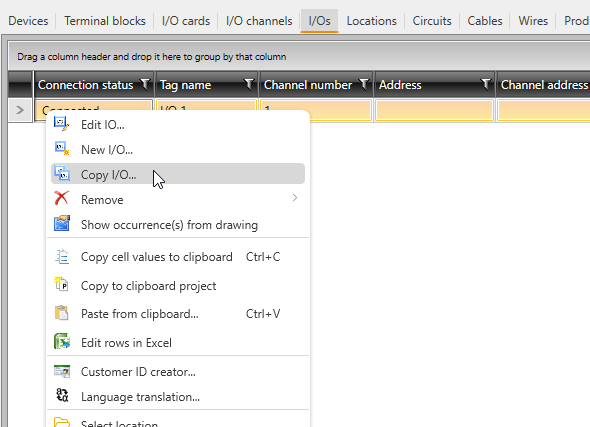

The I/Os tab shows all the I/Os in the project. On this tab, you can add, edit, copy and view them. To see the functions, right-click on the desired cell or the selected row:
In addition, you can select one or more I/Os and connect them with channels or disconnect them, for example.
The colors in Pin and Pin description columns are as follows:
-
Light green – Connected
-
Dark green – Connected, read-only
-
Light blue – Product model
-
Dark blue – Product model, read-only
-
Grey – Read-only
-
White – Editing allowed
