Save your own symbols

Distribution Board tab > Symbols group > Symbols

On the (User's symbols) tab in the Symbols window, you can create your own symbols by exploding an existing symbol to be used as the base. This is also an easy way to get several attributes for your symbol. You can copy and edit the attributes as needed.

Important: The symbol functions of CADMATIC Draw should not be used with symbols related to the Electrical application.

Do the following:

1. In the Symbols window, select the (User's symbols) tab.

2. Click the (Save user symbol) button.

3. Select objects to include in symbol to be saved.

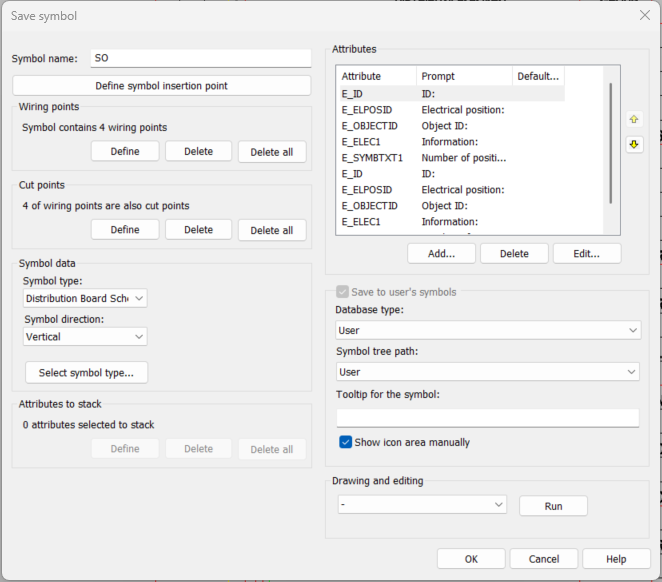

4. Indicate symbol's insertion point. The Save symbol dialog opens.



5. Define symbol information:

   • Symbol name – Enter the name for the symbol to be saved. The function adds SO by default but you can name the symbols any way you want.
   • Define symbol insertion point – Click to define the insertion point.
   • Wiring points – In this section, you can see the number of wiring points in the symbol. Symbols have to include one or more wiring points i.e. points where the wire or cable can be connected (like a real terminal of equipment). Therefore, it is important to draw all lines (wires or cables) from one wiring point to another.
   Show/hide details

   • Define – First, indicate the wiring point to which you want to draw the wiring. The point is marked with a cross. Second, pick wiring point's number attribute i.e. the attribute from which to read the connection information.

   • Delete – Pick the wiring point you want to remove. Removing a wiring point also removes cut points associated with it.

   • Delete all – Delete all wiring points defined for the symbol.

   • Cut points – In this section, you can see the number of cut points in the symbol. Two cut points make a pair, which can be used to cut line when inserting the symbol into the drawing.
   Show/hide details

   • Define:

     1. Select the 1st wiring point for the wiring point pair.

     2. Select the 2nd wiring point for the wiring point pair. The first wiring point pair is marked with a red dashed line.



     3. Select the next wiring point pair.

   • Delete – Pick pair of cut points you want to remove. Cut points are marked with cross and dashed line.

   • Delete all – Removes all cut points from symbols wiring points.

   • Symbol data
     • Symbol type is important for the functions to recognize the symbol to certain electric symbol.
     • Select to create a horizontal or vertical symbol.
     • With Select symbol type, you can select several subtypes.

   • Attributes – E_ID (ID) is required.

     You can add, delete and edit the attributes.

   • Add – Select the desired attribute and insert default value if needed. Click OK and indicate the insertion point.

   • Delete – Remove an attribute.

   • Edit – Edit attribute properties. You can edit the order of attributes in the symbol with the arrow buttons. See Edit attribute properties.

   • Save to user's symbols – If you want the symbol to be available in the Symbols window, select this. Otherwise, the symbol will be saved to the symbols in your user profile but it will not be shown in the Symbols window.
     • Database type – Select the type of the database: User or Shared.
     • Symbol tree path – Select the desired symbol tree folder from the drop-down menu, or create a new one by selecting New. The folders can be managed in the Symbols window.
     • Tooltip for the symbol – Define the tooltip shown when hovering over the symbol.
     • Show icon area manually – Outline the area you want to show in the symbol icon.
   • Drawing and editing – Select the desired edit function (such as Draw line) from the drop-down menu and click Run. When the action is completed, the function will return back to the symbol saving dialog automatically.

6. Click OK.

Edit attribute properties

In the Save symbol dialog, click Edit to open the Attribute properties dialog.

• Pin number – Define the running number for pin attributes.

• Part number – Compiled symbols require a part number. If different symbols are used for different device occurrences and the symbols have the same attributes while they mean different things, you have to define a part number, which separates the pins from each other.

  An example of a compiled contactor symbol



  E_PINA001[112], Value: 1, Part number: 112

  E_PINB001[112], Value: 2, Part number: 112

  E_PINA001[114], Value: 3, Part number: 114

  E_PINB001[114], Value: 4, Part number: 114

  E_PINA001[116], Value: 5, Part number: 116

  E_PINB001[116], Value: 6, Part number: 116

  E_PINA001[202], Value: 13, Part number: 202

  E_PINB001[202], Value: 14, Part number: 202

  E_PINA001[201], Value: 21, Part number: 201

  E_PINB001[201], Value: 22, Part number: 201

  E_PINA001[101], Value: A1, Part number: 101

  E_PINB001[101], Value: A2, Part number: 101

• Attribute name – The name is generated from the attribute, pin number and part number.

• Prompt – Define the prompt/description shown when using the symbol.

• Default value – Define a default value for the attribute. Alternatively, you can leave this blank and select to define the attribute value on symbol insertion.

• Ask attribute value on symbol insertion – Select this if you want the application to ask for the attribute value when you insert the symbol. If you defined the default value, that will be used.

• Attribute visible – Select this if you want the attribute to be shown in the drawing.

• Reposition attribute (available when editing) – Select this if you want to reposition the attribute you are editing.

• Alignment and Vertical alignment – Define the horizontal and vertical alignment for the attribute.

• Appearance – Define the size, angle (in degrees) and color of the attribute.

  • Angle – The angle is typically 0, for vertically readable attributes 90 or 270. Other free angles are also supported.

  • Style – Select the desired text style by clicking the button.
