Insert symbols

Single-line tab > Devices group > Symbols

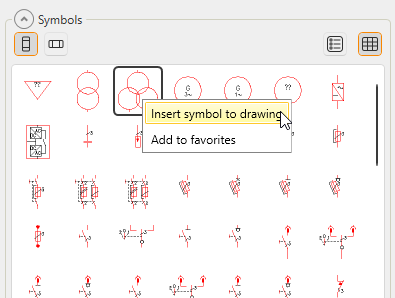

In the Symbols window, you can insert a symbol into the drawing via any of the tabs by double-clicking the symbol and indicating the insertion point. Alternatively, you can right-click the symbol and select Insert symbol to drawing:

When you select to insert a marking symbol, you need to indicate the main symbol; it is not possible to insert a marking symbol on its own.
