Edit wall data of space objects

Spaces tab > Edit group > Space's wall

With this function, you can edit the wall data of the selected segment of the space boundary polyline.

Do the following:

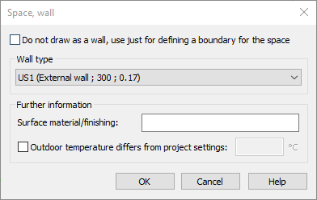

1. Select a segment from the space boundary polyline for which the data will be modified (wall data exists also at an opening). The Space, wall dialog opens.



2. Select whether the wall data will be defined for the space boundary polyline to be drawn. If yes, do the following:

   1. Select the wall type.

   2. Enter the surface material or finishing for the wall.

   3. Select whether a different outside temperature is defined for the wall (e.g. semi-heated room). If yes, enter the temperature.

3. Click OK.
