Possible export formats

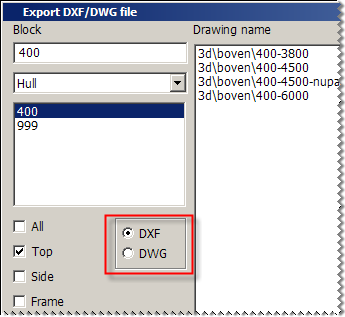

By default the DXF/DWG format toggle in the export panel is set to 'DXF'. So, if the toggle is not changed manually all the selected drawings will be exported in DXF format. This default behaviour can be overridden by the Import/Export > DXF/DWG > Export setting in the System Management application by using the Default Export File Type option. If this setting has the value Dwg the DXF/DWG format toggle is set to DWG when the export dialog is opened. In this case the DWG files are generated when the toggle is not changed manually.

Drawings which are on the screen at the time the export function is started will be exported in the format which is active when the export panel is opened.
