Extend

Modify > Extend

Extend line segments, splines, arcs and circles by indicating base items as line segments, construction lines, splines, arcs and circles.

The table below shows you the possible item combinations for extending.

Item to Extend \ Base Item	Line Segment	Construction Line	Spline	Arc	Circle
Line Segment	Yes	Yes	Yes	Yes	Yes
Construction Line	No	No	No	No	No
Spline	Yes	Yes	Yes	Yes	Yes
Arc	Yes	Yes	Yes	Yes	Yes
Circle	No	No	No	No	No

Yes = can be extended, No = no extend possibility

Extending items

Select items to extend to and press Enter:

Indicate one or more base items to extend other items to.
Press Enter when you are ready with indicating the base items.
After pressing Enter the selected base items are set to the pen number 30 for a better recognition.

Select items to extend or Shift-select to trim:

Indicate one or more items to extend.
The indicated items are immediately extended to the closest intersection point with one of the base items.
If you want to trim items from the same base item collection, point to the item you want to trim while pressing Shift.

Function dependent options

Distance [current value] – Enter an extend distance. Extend distance is only used when extending a line segment.

A positive distance means the distance from the base item and the end point of the line that is extended.
A negative distance means the overlapping distance between the base item and the end point of the extended line (see the pictures below).
The default distance is 0.

Extend a Line Segment

Distance = 0

Distance = +50

Distance = -50

This option becomes available after the base items are indicated

Special features

Extend two lines to their intersection point – Select the two lines you want to extend to each other. Press Enter to extend the lines to their common intersection point.

Extend two Line Segments

Select both lines and press Enter

Press Enter

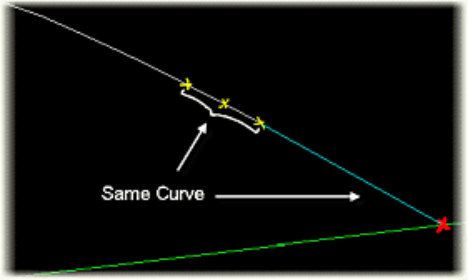

Extend splines – Splines are extended with the same curve as the last two spline's line segments curve.

Extend Spline to Line

Extend with the Same Curve

Note: For extending a line segment without indicating base items you can use the Modify > Lines > Move End Point function.
