Arrows

Presentation > Profiles > Arrows

Define the arrow that is shown automatically for a profile that intersects another part that has a cutout around the profile.

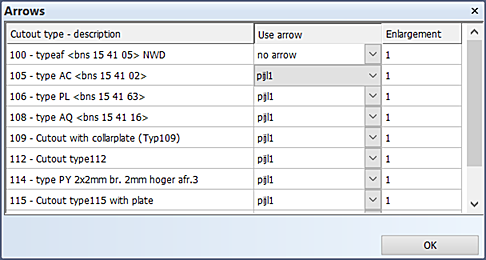

You can set the arrow model name and enlargement factor for each cutout type that is present in the %ncgnorms% directory. The available arrow settings are as follows.

• no arrow
• pijl1: This is the default arrow model, located in the %ncgmodellen% with the name pijl1.mod.
• Any user defined arrow models present in %ncgmodellen% with names prfarrow*.mod

You can add user-defined arrow types in the Contek applications with the Hull > Import > Hull model function.

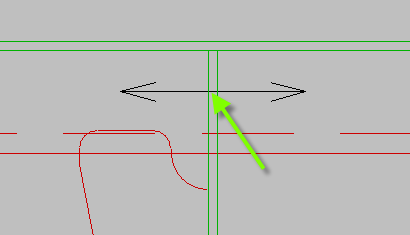

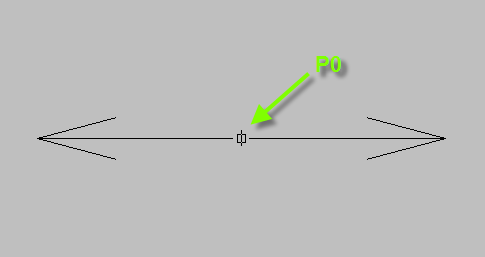

In the pictures below, the orientation point P0 above the standard arrow model pijl1.mod is used as the intersection point between the profile and the other part.
