By means of the "File" -> "Import" -> "DXF/DWG" option, it is possible to import drawings that have been saved in the DXF/DWG format.

Source Path

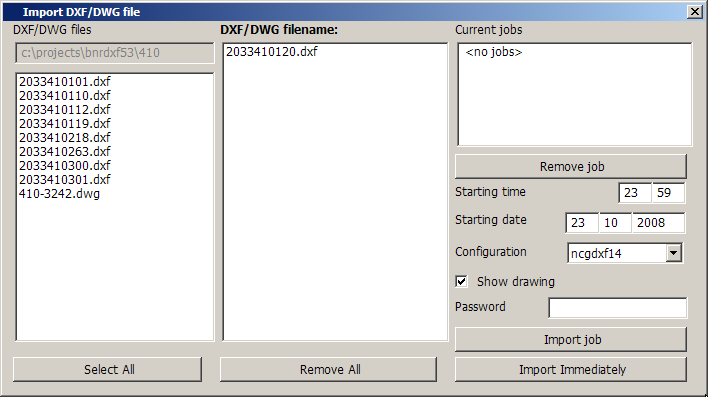

Use the option 'Default Path For Import' in function "Import/Export" -> "DXF/DWG" -> "Import" in the System Management application to determine a central import directory. As a default the DXF/DWG files in the currently active section directory will be displayed in the selection list of the import DXF/DWG panel. The path to the import directory can be changed manually in the input field below 'DXF/DWG files' text.

Note: The DXF/DWG file should have the .dxf  or .dwg extension respectively.

Destination

The converted files are placed in the overig sub-directory of the 2D-Contek application. For example, if the 3D-Contek is the active application, the converted files are placed as "mod" files in the 2d/overig directory. This way the drawing can be loaded with "File" -> "Open Drawing" function in the 2D-Contek application by selecting the 'Other' group.
