Rearranging the assembly order

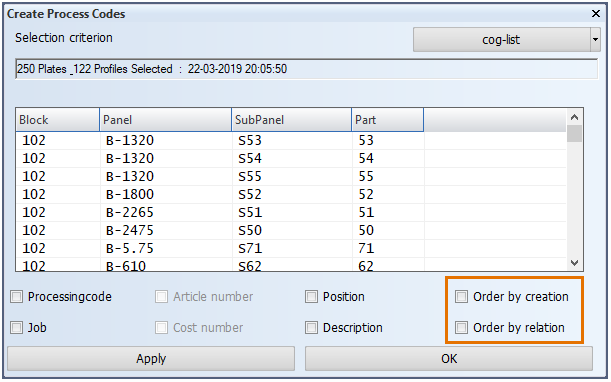

The assembly order of parts can be changed when adding the processing codes to the logistical database. This is done in with the Production > Logistics > Process Codes function by selecting either Order by creation or Order by relation.

The selected items will get their work breakdown order according to the selected option:

• Order by creation – All selected items will get a new work breakdown tree order based on the creation time of the plates.

• Order by relation – All selected items (preferably all items in the block) will get a new work breakdown tree order based on the mutual relations of the plates.

It is recommended that all the items in the block are selected. The related attributes of the plate will follow the plate order.
