Matching the Revision Tables in Hull and Outfitting

In order to publish from Hull to eShare, the revision table in Hull must match with the revision table in Outfitting. If the tables do not match, the project administrator must match the COS configuration with the change.cmd macro in the norms of the project, or update the change.cmd macro to only use revision names that appear in the COS table.

The revisions for Hull come from the change.cmd macro in %NCGNORMS%.

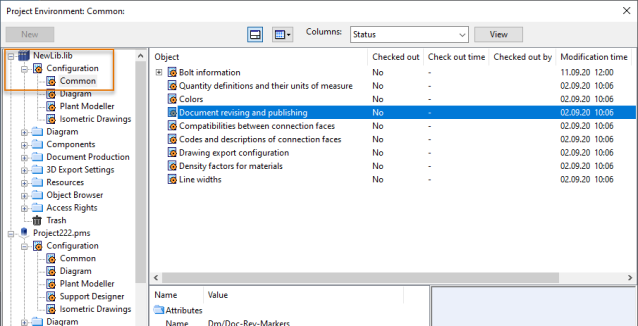

In Outfitting, the revision table is the Document revising and publishing object located in the library database or the project database. In Plant Modeller, browse to it by selecting File > Environment > All Library and Project, and then expand Configuration and select Common.
