Surface / Curve Properties

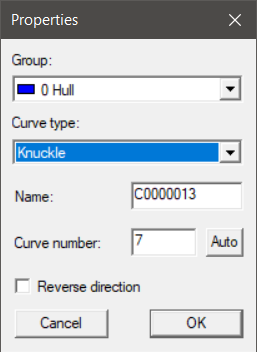

The Properties dialog can be used to change the properties of selected surfaces or curves.

Name is limited to 8 characters and is for internal use only. It never appears in CADMATIC Hull.

The Curve type and Curve number properties are only applicable for the selected curves. Click Auto to use the next free curve number in the current group of the selected curve type.

Select Reverse direction to reverse the orientation of the surface/curve. See Surface Orientation for more information.
