Pump foundation I

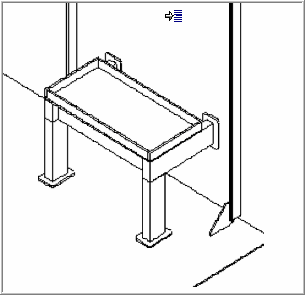

This foundation consists of U-profiles with a double plating at the ends.

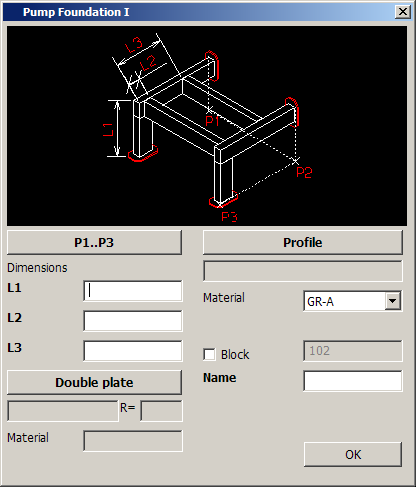

This construction can serve as a foundation for a pump for example. This foundation requires three points to be selected. The first two points must be on a plate in section. The third point must be on a plate in view. Also the height of the foundation and the position of the cross bars must be entered.
