Pump foundation II

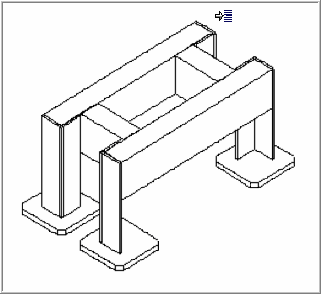

This foundation consists of a combination of equal angle bars and U-profiles with a double plating at the corners.

This construction can serve as a foundation for a pump for example. This foundation requires three points to be selected. These points must be on a plate in view. Also the height of the foundation and the position of the cross bars must be entered.
