Overview of the entered copy actions

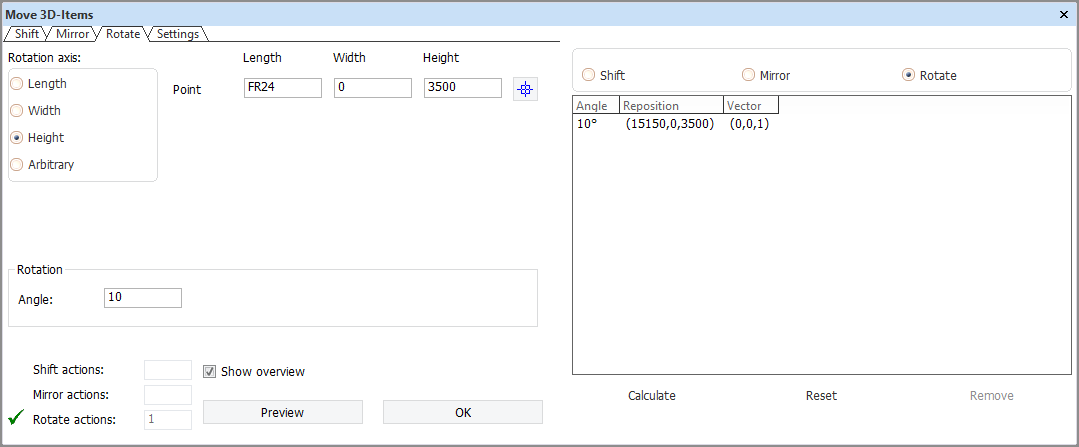

Selecting Show overview in the Copy 3D-Items or Move 3D-Items dialog displays or hides an overview panel showing the copy/move actions that have been specified so far.

The overview is available in all tabs of the dialog. With the Shift, Mirror, and Rotate options you can select which type of actions are shown in the overview panel.

The following options are available in the overview panel:

Calculate – Updates the overview if you have made changes in the rotation axis and angle.

Reset – Removes all actions and clears all the input fields.

Remove – Removes the selected action from the list.
