Bracket type 761

Bracket type 761 is a default straight span bracket with a bird tail overlapping other construction. A small part of the bracket's dimension can be selected from a list of predefined sizes, or the user can enter the dimensions freely. If the span length is bigger than 475 mm, the system automatically adds a flange of 75 mm or 90 mm. If R1 is bigger than 699 mm, a flange of 90 mm is added, otherwise 75 mm. If the user selects a predefined size, the system gives the part a part number. Otherwise the part number will be zero.

Relation

Question

Selection criterion

First

Indicate deck

Plate or bracket in section, deck line.

Second

No question is ask the selection of the second leg is automatically don by the system.

Plate or bracket in section, hull line, profile or face plate in section, plate or bracket in plan view, profile or in plan view

If the selection criterium is a deck line, a hull line with a group other than 0 can by selected.

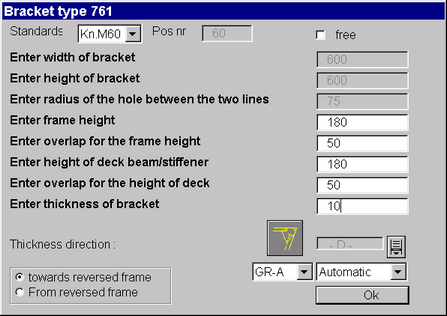

R variable

Default

Question

R1

Select from a list

Enter width of bracket

R2

Select from a list

Enter height of bracket

R3

Select from a list 50 or 75

Enter radius of the hole between the two lines

R4

No default

Enter frame height

R5

No default

Enter overlap for the frame height

R6

No default

Enter height of deck beam/stiffener

R7

No default

Enter overlap for the frame deck

D

Calculate from height of bracket

Enter thickness of bracket

Type macro

LABEL 1

BracketNumber=761

SelCri[1]='CSPLATE,CSDECK'

SelCri[2]='CSPLATE,CSSHELL'

SelText[1] = 16

SelText[2] = S

exit

The second SelText is defined with a S. This means that the system will search for a second part using the first point.

LABEL 2

Quest[1]= 1

Quest[2]= 2

Quest[3]= 7

Quest[4]= 5

Quest[5]= 11

Quest[6]= 6

Quest[7]= 12

Quest[8]= 3

if Angle < 60 then

{

if lang = 'dutch': BrMessage= '!!! Breedte knie moet wel groter zijn dan de hoogte knie !!!'

else BrMessage= '!!! Width of the bracket must be greater than the height of the bracket !!!'

}

VarStr2='yes'

CheckMeasure=TRUE

exit

In this case the Question text is taken from the standard text file bracketquest0.cmd.

If the angle between the two legs is smaller than 60 degrees, a message will appear, depending on the lang variable. With the CheckMeasure variable you activate the dimension direction panel.

LABEL 3

if Angle < 60 : stand='free' ; Ans[1]=0

exit

If the angle between the two big legs is less than 60 degress, the dimension of bracket must by completely defined by the user.

LABEL 4

if stand='Kn.M30' then

{

PosNr=30; Ans[1]=300; Ans[2]=300; Ans[3]=50; Ans[4]= 12345

Ans[5]= 12345; Ans[6]= 12345; Ans[7]= 12345; Ans[8]= 12345

}

if stand='Kn.M35' then

{

PosNr=35; Ans[1]=350; Ans[2]=350; Ans[3]=50; Ans[4]= 12345

Ans[5]= 12345; Ans[6]= 12345; Ans[7]= 12345; Ans[8]= 12345

}

if stand='Kn.M40' then

{

PosNr=40; Ans[1]=400; Ans[2]=400; Ans[3]=75; Ans[4]= 12345

Ans[5]= 12345; Ans[6]= 12345; Ans[7]= 12345; Ans[8]= 12345

}

if stand='Kn.M45' then

{

PosNr=45; Ans[1]=450; Ans[2]=450; Ans[3]=75; Ans[4]= 12345

Ans[5]= 12345; Ans[6]= 12345; Ans[7]= 12345; Ans[8]= 12345

}

if stand='Kn.M50' then

{

PosNr=50; Ans[1]=500; Ans[2]=500; Ans[3]=75; Ans[4]= 12345

Ans[5]= 12345; Ans[6]= 12345; Ans[7]= 12345; Ans[8]= 12345

}

if stand='Kn.M60' then

{

PosNr=60; Ans[1]=600; Ans[2]=600; Ans[3]=75; Ans[4]= 12345

Ans[5]= 12345; Ans[6]= 12345; Ans[7]= 12345; Ans[8]= 12345

}

if stand='Kn.M70' then

{

PosNr=70; Ans[1]=700; Ans[2]=700; Ans[3]=75; Ans[4]= 12345

Ans[5]= 12345; Ans[6]= 12345; Ans[7]= 12345; Ans[8]= 12345

}

if stand='free' then

{

Ans[1]= 12345; Ans[2]= 12345; Ans[3]= 12345;Ans[4]= 12345

Ans[5]= 12345; Ans[6]= 12345; Ans[7]= 12345; Ans[8]= 12345

}

exit

The stand variable, defined in the bracket761.inp file, is used to define the default answers. Normally the input fields for a standard are frozen. If value -12345 is assigned, the corresponding input field is not frozen and empty so values can be entered.

In this case the method of definition is different than bracket760.cmd because one line of the macro must not have more than 130 characters.

LABEL 5

Br_panel='YA'

if CheckMeasure=TRUE : Sdummy=bracketnumber'a'

else Sdummy=bracketnumber

if Ans[4] > 1 & Ans[6] > 1 : Ans[5]=1.25*Ans[4]; Ans[7]=1.25*Ans[6]

VarStr='TYPE ^Sdummy R1 '<Ans[1]>' R2 '<Ans[2]>' R3 '<Ans[3]>' R4 '<Ans[4]>' R5 '<Ans[5]>' R6 '<Ans[6]>

VarStr=VarStr' R7 '<Ans[7]>' D '<Ans[8]>

if stand='Kn.M50' | stand='Kn.M60' : VarStr2='FB 75 FE1 2 FE2 2 F1R2 45 F1R3 15 F2R2 45 F2R3 15 '

if stand='Kn.M70' : VarStr2='FB 90 FE1 2 FE2 2 F1R2 45 F1R3 15 F2R2 45 F2R3 15 '

if stand='free' & Ans[1] < 700 : VarStr2='FB 75 FE1 2 FE2 2 F1R2 45 F1R3 15 F2R2 45 F2R3 15 FC 475'

if stand='free' & Ans[1] > 699 : VarStr2='FB 90 FE1 2 FE2 2 F1R2 45 F1R3 15 F2R2 45 F2R3 15 FC 475'

if Ans[4]>0 & Ans[6]>0 & Ans[5]=1.25*Ans[4] & Ans[7]=1.25*Ans[6] then

{

if Ans[1]>(1.25*Ans[4]+Ans[3]) & Ans[2]>(1.25*Ans[6]+Ans[3]) : Ready='ready'

else

{

if lang = 'dutch' :notify t=ERR;' De breedte of hoogte is te klein !!! '

else notify t=ERR;' Width or height is to small !!! '

}

}

else

{

if Ans[5]<>1.25*Ans[4] & Ans[7]<>1.25*Ans[6] & Ans[4]>0 & Ans[6]>0 then

{

if lang = 'dutch' :notify t=ERR;'Een van de overlappen is niet goed. Er geldt: 1.25*HP !!! '

else notify t=ERR;'One of the overlaps is not good. Note: 1.25*HP !!! '

}

else

{

if lang = 'dutch' :notify t=ERR;'Er staan nog vragen met geen antwoorden !!! '

else notify t=ERR;'There are still questions without answers !!! '

}

}

exit

The bracket gets panel code YA.

A flange will be added to the free bracket and stand name Kn.M70, Kn.M50 and Kn.M60 if the length is bigger than 475 mm. Stand name Kn.M70 gets a flange of 90 mm.

LABEL 6

exit



LABEL 7

Quest[1]= 1

Quest[2]= 2

Quest[3]= 7

Quest[4]= 5

Quest[5]= 11

Quest[6]= 6

Quest[7]= 12

Quest[8]= 'Specify R8'

Quest[9]= 3

VarStr='R1 300 R2 300 R3 35 R4 100 R5 125 R6 100 R7 125 R8 ^angle D 8'

exit

LABEL 8

SymbolType=1

exit

 The default dimension for a free bracket is different from the one for a standard bracket.

LABEL 9

exit

The default description for bracket defined in the System Management application will be used.

Type file

ncgnorms/bracket/bracket761

ncgnorms/bracket/bracket761a

12 8

#as1

R1

R6

20.0

U2+U3

40.0

U2U5

25.0

R1R7

35.0

1.0

U8U9

0.0

12 8

#as1

R1

R6

20.0

U2+U3

40.0

U2U5

25.0

R1R7

35.0

1.0

U8U9

0.0

#as2

1.0

V1sBA

R2/V2

V3R5

V4U9

U9

R4U5

R4+U3

#as2

1.0

V1sBA

R2

V3R5

V4U9

U9

R4U5

R4+U3

#vorm

L AU1 U4 AU1 U6

C ? ? U7

L AU1 U6 AU8 U9

L AU8 U9 AU8 U

C ? ? UA*U9

L AU8 U AUB U

L AUB U AU U

C ? ? UA*R3

L AV V AV5 V

L AV5 V AV4 V

C ? ? UA*U9

L AV4 V AV4 V6

L AV4 V6 AV3 V7

C ? ? U9

L AV3 V7 AV3 V8

F S UC

L AV3 V8 AU1 U4

F E UC

E

M D1 AU U AU1 U

M D2 AV V AV1 V

Q



CS Fit bracket type M (Bracket between deck and shell birdtail)

#vorm

L AU1 U4 AU1 U6

C ? ? U7

L AU1 U6 AU8 U9

L AU8 U9 AU8 U

C ? ? UA*U9

L AU8 U AUB U

L AUB U AU U

C ? ? UA*R3

L AV V AV5 V

L AV5 V AV4 V

C ? ? UA*U9

L AV4 V AV4 V6

L AV4 V6 AV3 V7

C ? ? U9

L AV3 V7 AV3 V8

F S UC

L AV3 V8 AU1 U4

F E UC

E

M D1 AU U AU1 U

M D2 AV V AV3 V

Q



CS Fit bracket type M (Bracket between deck and shell birdtail)

The last line in the type file will be used in the 3D-Item Information by the Att ? function. The result will be: Type : 761 (CS Fit bracket type M (Bracket between deck and shell birdtail).

U variables

Variable name as1

Function in bracket761 + bracket761a

U1

Equal to R1

U2

Equal to R6

U3

Fixed variable 20 this will be added to the small legs

U4

Total length of the small leg

U5

Fixed variable 40

U6

Overlap distance − 40

U7

Fixed variable 25 radius of curvature

U8

R1 − R7

U9

Fixed variable 35 radius of curvature

UA

Variable to define the direction of the circle or to make the y direction negative.

UB

U8 − U9

UC

Fixed variable 0

V variables

Variable name as2

Function in bracket761

Function in bracket761a

V1

Fixed variable 1

Same as 761

V2

Sinus of the angle between the two big legs

Same as 761

V3

R2 divide by the sinus of the angle  between the two big legs

Equal to R2

V4

R2 − R5

Same as 761

V5

V4 − 35

Same as 761

V6

Fixed variable 35 radius of curvature

Same as 761

V7

R4 − U5

Same as 761

V8

R4 + U3 Total length of the small leg

Same as 761
