Bracket type 762

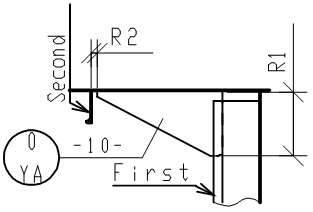

Bracket type 762 is a bracket fitted between a profile or plate in cross section and a profile in plan view. The user change the height, gap and thickness. If the span length of the bracket is bigger than 475 mm, the system automatically adds a flange of 75 mm.

Relation	Question	Selection criterion
First	Indicate profile at position where overlap has to be placed	Profile in plan view
Second	No see Third	Plate or bracket in section, hull line
Third (Second)	Indicate profile/plate in section, where bracket stops	Plate or bracket in section, profile or face plate in section.

The second relation is selected automatically.

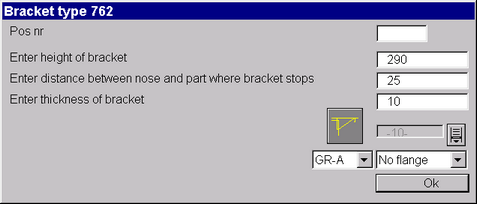

R variable	Default	Question
R1	Calculate from height of profile	Enter height of bracket
R2	25	Enter distance between nose and part where bracket stops
D	Same as profile in plan view	Enter thickness of bracket

Type macro

Show/hide the type macro

LABEL 1

BracketNumber=762

SelCri[1]='PLANPROFILE'

SelCri[2]='CSPLATE,CSSHELL'

SelCri[4]='CSPROFILE,CSPLATE'

SelText[1] = 2

SelText[2] = S

SelText[4] = 18

exit

The second SelText is defined with a S. This means that the system will search for a second part using the first point.

LABEL 2

Quest[1]= 2

Quest[2]= 13

Quest[3]= 3

if CheckProfCut=FALSE : CheckSlant=FALSE;

VarStr2='yes'

exit

If the profile in plan view does not hit the plate in cross section, the user will be asked to select an overlap type.

LABEL 3

FlangeAction=3

if HP[1]<>0 then

{

if abs(HpGap[1] Def_Par_Dist)>3 : Ans[1]=Def_HP_fact*HP[1]+HpGap[1];

else Ans[1]=Def_HP_fact*HP[1]+Def_Par_Dist

}

Ans[2]=25

Ans[3]=DP[1]

exit

flangeAction value 3 means the default value No flange.

If the gap between the profile in plan view and the plate in cross section is bigger than the default gap distance (Def_HP_Par), R1 will be calculated by (profile height * 1.25 + gap).

Def_HP_fact is by default 1.25, but can be changed by the system manager

LABEL 4

exit

The stand variable, defined in the bracket761.inp file, is used to define the default answers. Normally the input fields for a standard are frozen. If value -12345 is assigned, the corresponding input field is not frozen and empty so values can be entered.

In this case the method of definition is different than bracket760.cmd because one line of the macro must not have more than 130 characters.

LABEL 5

Br_panel='YA'

if CheckProfCut=TRUE then

{

Sdummy=^BracketNumber'a';

}

else

{

if CheckSlant=TRUE :Sdummy=^BracketNumber'b'

else Sdummy=^BracketNumber

}

if BT < 7 : RigRad[1]=30;

else RigRad[1]=4*BT

if CheckSlant=TRUE : RigRad[2]=1 ;

else RigRad[2]=0

VarStr='TYPE ^Sdummy R1 '<Ans[1]>' R2 '<Ans[2]>' R3 '<Def_Round_Rad>

VarStr=VarStr' R4 '<RigRad[1]>' R5 50 R6 '<RigRad[2]>' D '<Ans[3]>

VarStr2='FB 75 FE1 1 FE2 1 F1R2 45 F2R2 45 FC 475'

if abs(Ans[3])*4 < HP[1] : Ready='ready'

if abs(Ans[3])*4 >= HP[1] then

{

if lang = 'dutch': notify t=ERR;'De dikte van de knie is te groot !!';

else notify t=ERR;'The thickness of the bracket is to big !!';

}

exit

The bracket gets panel code YA.

If the profile in plan view does not stop, type 762a is used to define the bracket. If not then depended on the overlap, choose type 762b or 762.

A flange will be added automatically if the length is bigger than 475 mm. The user can also select to add a flange.

LABEL 6

if CreateMod='M' & CheckProfCut=FALSE then

{

if DRvars[6]=1 : CheckSlant=TRUE;

else CheckSlant=FALSE

}

exit

If the bracket is changed by the user (CreateMod=M) and there is a gap between the between the profile in plan view and the plate in cross section, CheckSlant is set to the previously given value.

LABEL 7

Quest[1]= 2

Quest[2]= 13

Quest[3]= 16

Quest[4]= 3

VarStr='R1 300 R2 25 R3 25 R4 25 R5 50 R6 0 D 10'

VarStr2='FB 75 FE1 1 FE2 1 F1R2 45 F2R2 45 FC 200'

exit

LABEL 8

SymbolType=1

exit

LABEL 9

exit

The default description for bracket defined in the System Management application will be used.

Type file

Show/hide the type file

ncgnorms/bracket/bracket762

ncgnorms/bracket/bracket762a

ncgnorms/bracket/bracket762b

7 6 0 3

#as1

1.0

100.0

15.0

U1*R4

U1*U2

13 6 0 3

#as1

1.0

U1*U2

15.0

BAU7

U2sU8

U1*R3

U9+UB

UB*U1

17 14 0 3

#as1

1.0

100.0

40.0

15.0

180.0

HP1U4

U1*R4

U6BA

U2tUA

U7/UB

UC+U3

U1*U7

3.0

U1*U3*UF

#as2

BL4

BL4R2

V4+U2

#as2

100.0

U1*V3

0.0

BL4+V3R2

#as2

BL4

0.5

1.0

V4BC

V6cV7

V3/V8

V9*V9

VA^V5

V2VB

BL4+U3

#as4

20.0

#as4

20.0

U1*V3

#as4

20.0

U1*U3

#vorm

L AU5 U3 AU5 U4

C ? ? R3

L AU5 U4 AU6 U4

C ! ! U7

L AV1 V AV5 V

C ! ! U7

L AY3 Y1 AY2 Y1

F S V3

L AY2 Y1 AU5 U3

F E V3

M D1 AU5 U AU U

M D2 AV6 V AV4 V

Bracket fitted between two profiles

#vorm

L AU4 U6 AU4 U3

C ? ? R3

L AU4 U3 AUC U3

C ? ? R3

L AUC U3 AUB U

L AUB U AU U

C ? ? UD

L AV V AV6 V

C ! ! V5

L AY3 Y1 AY2 Y1

F S U5

L AY2 Y1 AU4 U6

F E U5

M D1 AU4 U3 AU U3

M D2 AV1 V P9

Bracket fitted between two profiles

#vorm

L AU8 U5 AU8 U9

C ? ? R3

L AU8 U9 AUD UE

L AUD UE AUG UE

C ! ! UH

L AV1 V AVE V

C ! ! UH

L AY3 Y1 AY2 Y1

F S V3

L AY2 Y1 AU8 U5

F E V3

M D1 AU8 U AU U

M D2 P5 P6 0

Bracket fitted between two profiles

The last line in the type file will be used in the 3D-Item Information by the Att ? function. The result will be: Type: 762 (Bracket fitted between two profiles).

U variables

Variable name as1	Function in bracket762	Function in bracket762a	Function in bracket762b
U1	Variable to define the direction of the circle or to make the y direction negative.	Same as 762	Same as 762
U2	Fixed variable of 100 mm	Equal to R4	Fixed value 1
U3	Fixed variable of 15 mm	Make the overlap negative	Fixed variable of 100 mm
U4	Make the overlap negative	Equal to R1	Fixed variable of 40 mm
U5	Equal to R1	Equal to R2	Fixed variable of 15 mm
U6	Fixed variable of -100 mm	Fixed variable of 15 mm	Fixed variable of 180 mm
U7	Fixed variable 0	Fixed variable of 90 mm	Height of the first profile + 40
U8	Not in use	Angle between the two big legs – 90.	Equal to R1
U9	Not in use	Overlap * sinus U8	Make the overlap negative
UA	Not in use	Make the radius negative	180 - Angle between the two big legs
UB	Not in use	Equal to R5	Tangent of Angle between the two big legs
UC	Not in use	U9 + UB	U7 / UB
UD	Not in use	Negative R5	UC + 100
UE	Not in use	Not in use	Make U7 negative
UF	Not in use	Not in use	Fixed variable 3
UG	Not in use	Not in use	Fixed variable −300
UH	Not in use	Not in use	Fixed variable 0

V variables

Variable name as2	Function in bracket762	Function in bracket762a	Function in bracket762b
V1	Equal to U6	Equal to U3	Equal to UG
V2	The length between the crossing point of the two big legs of the bracket and the crossing point of the small leg with the second big leg of the bracket	Equal to R2	The length between the crossing point of the two big legs of the bracket and the crossing point of the small leg with the second big leg of the bracket
V3	Equal to R2	Fixed variable 100 mm	Equal to R2
V4	V2 − R2	Fixed variable −100 mm	Fixed variable 90 mm
V5	V4 + 100	Fixed variable 0	Fixed variable 0.5
V6	Equal to U4	The length between the crossing point of the two big legs of the bracket and the crossing point of the small leg with the second big leg of the bracket + V3 – R2	Fixed variable 1
V7	Not in use	Not in use	90 − the angle the small leg with the second big leg of the bracket
V8	Not in use	Not in use	Sinus V7
V9	Not in use	Not in use	R2 / V8
VA	Not in use	Not in use	V9 * V9
VB	Not in use	Not in use	Root from VA with this trick the value is always positive
VC	Not in use	Not in use	V2 – VB
VD	Not in use	Not in use	Equal to U9
VE	Not in use	Not in use	The length between the crossing point of the two big legs of the bracket and the crossing point of the small leg with the second big leg of the bracket + U3

Y variables

Variable name as4	Function in bracket762	Function in bracket762a	Function in bracket762b
Y1	Equal to V3	Equal to R2	Equal to V3
Y2	Fixed value of 20	Fixed value of 20	Fixed value of 20
Y3	Equal to U6	−V3	−V3
