Bracket type 765

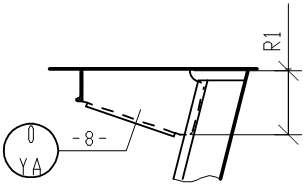

Bracket type 765 is a bracket fitted between a profile or plate in cross section and a profile in plan view. The dimensions are calculated according to the profile height. If the span length is bigger than 475 mm, the system automatically adds a flange of 75 mm.

Relation

Question

Selection criterion

First

Indicate profile at position where overlap has to be placed

Profile in plan view

Second

No, see Third

Plate or bracket in section, hull line

Third (Second)

Indicate profile/plate in section, where bracket stops

Plate or bracket in cross section, profile or face plate in cross section.

The second relation is selected automatically.

R variable

Default

Question

R1

Calculated from height of profile

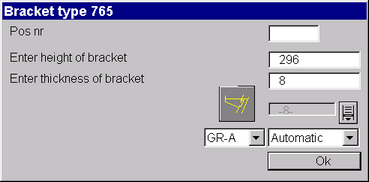

Enter height of bracket


D

The smallest  profile

Enter thickness of bracket

Type macro

LABEL 1

BracketNumber=765

SelCri[1]='PLANPROFILE'

SelCri[2]='CSPLATE,CSSHELL'

SelCri[4]='CSPROFILE,CSPLATE'

SelText[1] = 2

SelText[2] = S

SelText[4] = 18

exit

The second SelText is defined with a S. This means that the system will search for a second part using the first point.

LABEL 2

Quest[1]= 2

Quest[2]= 3

VarStr2='yes'

exit



LABEL 3

if HP[1]<>0 then

{

 if abs(HpGap[1] Def_Par_Dist)>3 :Ans[1]=Def_HP_fact*HP[1]+HpGap[1];

 else Ans[1]=Def_HP_fact*HP[1]+Def_Par_Dist

}

if DP[1] > DP[4]  : Ans[2]=DP[4] ;

else Ans[2]=DP[1]

CornerValue=0.25*HP[4]

exit

The height is taken from the HP[1] variable which is the height of the profile. If it is related to a plate the height is zero. If the gap between the profile in plan view and the plate in cross section is bigger than the default gap distance (Def_HP_Par), R1 is calculated by (profile heigth * 1.25 + Def_par_Dist).

The thickness of the bracket is the same than the smaller of the two profiles.

Gef_HP_fact is by default 1.25 but can be changed by the system manager.

LABEL 4

exit



LABEL 5

Br_panel='YA'

if BulbSide[4]=TRUE : Sdummy=^BracketNumber'a'

if BulbSide[4]=FALSE : Sdummy=^BracketNumber

RigRad[2]=0 ; RigRad[3]=CornerValue ;

if BT < 7 : RigRad[1]=30;

else RigRad[1]=4*BT

VarStr='TYPE ^Sdummy R1 '<Ans[1]>' R2 '<Def_round_rad>' R3 '<RigRad[1]>

VarStr=VarStr' R4 50 R5 '<RigRad[2]>' R6 '<RigRad[3]>' D '<Ans[2]>

VarStr2='FB 75 FE1 1 FE2 1 F1R2 45 F2R2 45 FC 475'

if abs(Ans[2])*4 < HP[1] : Ready='ready'

if abs(Ans[2])*4 >= HP[1] then

{

if lang = 'dutch': notify t=ERR;'De dikte van de knie is te groot !!';

else notify t=ERR;'The thickness of the bracket is to big !!';

}

exit

The bracket gets panel code YA.

BracketNumber is dependent on BulbSide. If the bracket is connected to the bulb side, the type is 765a otherwise it is 765.

A flange will be added if the length is bigger than 475 mm. The user can also select to add a flange. The RigRad variables are used for temporary storage.

LABEL 6

exit



LABEL 7

Quest[1]= 2

Quest[2]= 'Give rounding radius'

Quest[3]= 3

VarStr='R1 300 R2 25 R3 25 R4 50 D 14'

VarStr2='FB 75 FE1 1 FE2 1 F1R2 45 F2R2 45 FC 200'

exit



LABEL 8

SymbolType=1

exit



LABEL 9

exit

The default description for bracket defined in the System Management application will be used.

Type file

ncgnorms/bracket/bracket765

ncgnorms/bracket/bracket765a

14 3 0 3

#as1

1.0

4.0

R3

U1*U3

R1

25.0

20.0

1.0

BA

U8sU9

U3/UA

R4

UB*U1

UC*U1

13 9 0 10

#as1

1.0

4.0

R3

U1*U3

R1

25.0

20.0

90

BAU8

U3sU9

R4

UA+UB

UB*U1

#as2

UD

BL4

U5

#as2

U4

U4*U4

UA*UA

0.5

V2+V3

V5^V4

U1*V6

BL4

U5

#as4

0.25

Y1*HP4

HP4

#as4

0.25

HP4

HX54

HY54+HR4

HX44

HY44

HX24

U1*HR4

Y1*Y2

R5

#spt 1

ZAV PU5 U

#spt 1

ZAV PU5 U

#vorm

L V;AZX1+U7 ZY1 V;AZX1+V1 ZY1

C ? ? R2

L V;AZX1+V1 ZY1 CUC U4

C ? ? R2

L CUC U4 CUC U

L CUC U AU U

C ? ? UE

L AV V AV2 V

L AV2 V AY3 Y

F S U6

L AY3 Y V;AZX1+U7 ZY1

F E U6

E

M D1 AU5 U4 AU U4

M D2 AV1 V V;ABL4 V

Q



Bracket fitted between two profiles

#vorm

L V;AZX1+U7 ZY1 V;AZX1+V1 ZY1

C ? ? R2

L V;AZX1+V1 ZY1 AUC U4

C ? ? R2

L AUC U4 AUB U

L AUB U AU U

C ? ? UD

L AV V AV8 V

L AY Y AY7 Y

C ? ? HY14

L AY7 Y AY5 Y6

C AY3 HY54 Y8

P AY3 Y4

F S U6

L AY3 Y4 V;AZX1+U7 ZY1

F E U6

E

M D1 AU5 U4 AU U4

M D2 AV1 V AV;ABL4 V

Q



Bracket fitted between two profiles

The last line in the type file will be used in the 3D-Item Information by the Att ? function. The result will be: Type : 765 (Bracket fitted between two profiles).
