Bracket type 791

Bracket type 791 is a default bracket whose dimensions are calculated according to the profile height. In special cases the system adds a flange according to the profile height and the angle of the bracket. The bracket will be overlapped when the profile is bigger than 160 mm.

Relation

Question

Selection criterion

First

Indicate profile at position where overlap has to be placed

Profile in plan view

Second

Indicate line (eventually profile, to where no overlap)

Plate or bracket in section, hull line, profile or face plate in section, plate or bracket in plan view, profile in plan view

R variable

Default

Question

R1

Calculate from height of profile

Enter width of bracket

R2

Calculate from height of profile

Enter height of bracket

R3

Automatic

Offset

R4

Automatic

Extra length

D

Calculate from height of profile

Enter thickness of bracket

Type macro

LABEL 1

BracketNumber=791

SelCri[2]='CSPLATE,CSSHELL,CSPROFILE,PLANPLATE,PLANPROFILE'

SelCri[1]='PLANPROFILE'

SelText[2] = 1

SelText[1] = 2

Planview=1

exit

In this case the SelText uses the standard text from the brackethint0.cmd file.





When Planview is defined, the bracket can be placed as a cross section bracket. The value (1 or 2) defines whether the related part in plan view is the 1st or 2nd relation of the bracket.

LABEL 2

Quest[1]=2

Quest[2]=1

Quest[3]='Offset'

Quest[4]='Extra length'

Quest[5]=3

ans[3]=0

ans[4]=0

exit

This bracket is only possible in this situation if the profile height is 4 times bigger than the thickness of the profile.

LABEL 3

if (abs(abs(angle) 90)<=3) : Stand90=TRUE

else Stand90=FALSE ; Flangeaction=1

{

 if  HP[1] =  80 : stand='1'

 if  HP[1] = 100 : stand='2'

 if  HP[1] = 120 : stand='3'

 if  HP[1] = 140 : stand='4'

 if  HP[1] = 160 : stand='5'

 if  HP[1] = 180 : stand='6'

 if  HP[1] = 200 : stand='7'

 if  HP[1] = 220 : stand='8'

 if  HP[1] = 240 : stand='9'

 if  HP[1] = 260 : stand='10'

 if  HP[1] = 280 : stand='11'

 if  HP[1] = 300 : stand='12'

 if  HP[1] = 320 : stand='13'

 if  HP[1] = 340 : stand='14'

 if  HP[1] = 370 : stand='15'

 if  HP[1] = 400 : stand='16'

 if  HP[1] = 430 : stand='17'

}

exit

LABEL 4

{

 if (abs(abs(angle) 90)<=3) : Stand90=TRUE

 else Stand90=FALSE ; Flangeaction=1

 numeric hp1

 HP1=HP[1]

 if stand90=TRUE then

 {

   stand='18'

   if HP1 =  80 : stand='1'

   if HP1 = 100 : stand='2'

   if HP1 = 120 : stand='3'

   if HP1 = 140 : stand='4'

   if HP1 = 160 : stand='5'

   if HP1 = 180 : stand='6'

   if HP1 = 200 : stand='7'

   if HP1 = 220 : stand='8'

   if HP1 = 240 : stand='9'

   if HP1 = 260 : stand='10'

   if HP1 = 280 : stand='11'

   if HP1 = 300 : stand='12'

   if HP1 = 320 : stand='13'

   if HP1 = 340 : stand='14'

   if HP1 = 370 : stand='15'

   if HP1 = 400 : stand='16'

   if HP1 = 430 : stand='17'

 }

 if hp1<180 :            ans[5]=8

 if hp1=>180 & hp1<260 : ans[5]=10

 if hp1=>260 & hp1<370 : ans[5]=12

 if hp1=>370 & hp1<430 : ans[5]=14

 if hp1=>430 :           ans[5]=15

 Ans[1]=HP1

 string s1

 s1=Prof_type[1]

 if stand<>'free' then

 {

   if Stand90=TRUE & stand<>'18' then

   {

     PosNr=stand

     if PosNr<>0 & s1[1\2]='HP' then

     {

       PosNr=<^PosNr>

       if HP1=<140 :

       else PosNr=<^PosNr+20>

       if HPGap[1]=>1 : PosNr=<^PosNr+20>

     }

     else

     {

       Posnr='_'

     }

   }

   else

   {

     Posnr='_'

   }

   if S1[1\2]='HP' : Ans[1]=Ans[1]*1.5

   if S1[1\2]<>'ST' & s1[1\2]<>'HP' : Ans[1]=Ans[1]*2

   Ans[2]=Ans[1]

   if HpGap[1]<1 : Ans[2]=HP1

 }

}

exit

LABEL 5

{

 string s1

 Br_panel='YA'

 s1=Prof_type[1]

 if Posnr='_': Posnr=''

 if hpgap[1]<1 : Sdummy=^BracketNumber'd'

 else

 {

   if HP[1]=<140 & ans[4]<>1 : sdummy=^BracketNumber'a'

   else

   {

     if ans[4] <> 1 then

     {

       if Stand90=FALSE : sdummy=^BracketNumber'c'

       else sdummy=^BracketNumber'b'

     }

     else

     {

       if Stand90=FALSE : sdummy=^BracketNumber'e'

       else sdummy=^BracketNumber'f'

     }

   }

 }

 if s1[1\2]<>'ST' & ( Sdummy='791d' | Sdummy='791a' ) & ans[3] <> 1: brshift=7

}

VarStr='TYPE ^Sdummy R1 '<Ans[1]>' R2 '<Ans[2]>' R3 '<Ans[3]>' R4 '<Ans[4]> ' D '<Ans[5]>

Ready='ready'

if Stand90=FALSE then

{

 if Flangeaction=1 then

 {

   if hp[1]=< 160 : VarStr2='FB 90 FE1 25 FE2 25 F1R4 45 F2R4 45 F1R3 40 F2R3 40 FC 500'

   if hp[1]> 160 & hp[1]=< 240: VarStr2='FB 90 FE1 25 FE2 25 F1R4 45 F2R4 45 F1R3 40 F2R3 40 FC 600'

   if hp[1]> 240 & hp[1]=< 340: VarStr2='FB 90 FE1 25 FE2 25 F1R4 45 F2R4 45 F1R3 40 F2R3 40 FC 700'

   if hp[1]> 340 : VarStr2='FB 150 FE1 25 FE2 25 F1R4 45 F2R4 45 F1R3 40 F2R3 40 FC 850'

 }

 if Flangeaction=2 : VarStr2='FB 90 FE1 25 FE2 25 F1R4 45 F2R4 45 F1R3 40 F2R3 40 FC 0'

 if Flangeaction=3 : VarStr2='FB 90 FE1 25 FE2 25 F1R4 45 F2R4 45 F1R3 40 F2R3 40 FC 9000'

}

else

{

 VarStr2='FB 90 FE1 25 FE2 25 F1R4 45 F2R4 45 F1R3 40 F2R3 40 FC 9000'

}

exit

The bracket gets panel code YA.

Depending of the gap, the profile height or/and angle and the answers given in the panel (offset and extra length), a bracket type is chosen with an extension of a,b,c,d,e or f.





A flange will be added depending of the profile height and the length of the flange.

LABEL 6

exit

LABEL 7

Quest[1]=1

Quest[2]=14

Quest[3]=3

VarStr='Text A R1 115 R2 155 D 10'

VarStr2='FB 90 FE1 1 FE2 1 F1R2 45 F2R2 45 FC 600'

exit

LABEL 8

SymbolType=1

exit

LABEL 9

exit

The default description for bracket defined in the System Management application will be used.

Controlling extra length and offset:

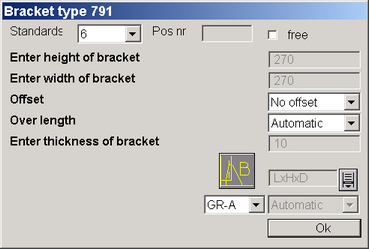

The tab file is manually changed after the first use of the bracket. This change takes care of two pull-down menus to control the plane (offset) of the bracket and the extra length. Specially for this reason, two files are made to illustrate the possibilities in the panel: shift791.dat and over791.dat. In these files contain the information shown in the drop-down menu.

shift791.dat

over791.dat

Automatic

No offset

Automatic

With extra Length

In this case the offset and extra length are controlled by the bracket_user macro. The BracketNumber variable must be used to control more than one bracket type.

-ncgnorms/bracket/bracket_user.cmd


label init

if BracketNumber=791 then

{

 unfreeze p=FunctieID, b=qn[6]

 unfreeze p=FunctieID, b=qn[8]

 if ans[3]=1 : click p=FunctieID, b=qn[6],t=2

 if ans[4]=1 : click p=FunctieID, b=qn[8],t=2

}

exit

In this case the init label is used to unfreeze the offset and extra length buttons even by the use of a standard bracket and to select the proper previous selection.

label execute

if BracketNumber=791 then

{

 unfreeze p=FunctieID, b=qn[6]

 unfreeze p=FunctieID, b=qn[8]

 if bn=qn[6] then

 {

   if st='Automatic' : ans[3]=0

   if st='No offset' : ans[3]=1

 }



 if bn=qn[8] then

 {

   if st='Automatic' & ans[4]=1 then

   {

     if HP[1]=<140 : ans[4]=0

     if posnr<>'' & stand<>'free' then

     {

       if HP[1]=<140 : PosNr=<^PosNr60>

       insert p=FunctieID, b=98, t=Posnr

     }

   }

   if st='With extra length' & ans[4]<>1 then

   {

     if HP[1]=<140 : ans[4]=1

     if posnr<>'' & stand<>'free' then

     {

       if HP[1]=<140 : PosNr=<^PosNr+60>

       insert p=FunctieID, b=98, t=Posnr

     }

   }

   if st='Automatic' & ans[4]=1 then

   {

     Tel 'Choise not allowed'

     click p=FunctieID, b=qn[8],t=2

   }

   if st='With extra length' & ans[4]<>1 then

   {

     Tel 'Choise not allowed'

     click p=FunctieID, b=qn[8],t=1

   }

 }

}

exit

The execute label is used to control the Ans[x] variables 3 and 4. Also the choice can be disabled or allowed in this situation.

The if statement must be used to control it for only this BracketNumber. If this general macro is used for more bracket types, use the same method by adding an additional if statement:

if BracketNumber=XXX then

{

  Control information

}

Type file

There are six type files for this bracket, but only one is covered here.

-ncgnorms/bracket/bracket791a, b, c, d, e & f

3 2

#as1

R1

15

75



#as2

R2

15



#vorm

L U U PU3;CU1 U

L PU3;CU1 U PU3;CU1 U2

F S 25

L PU3;CU1 U2 CV1 V2

F E 25

L CV1 V2 CV1 V

L CV1 V U U

E

M D1 U U PU3;CU1 U

M D2 V V CV1 V

Q



Bracket against profile in plan view



The last line in the type file will be used in the 3D-Item Information by the Att ? function. The result will be: Type : 791 (Bracket against profile in plan view).
