Split threshold

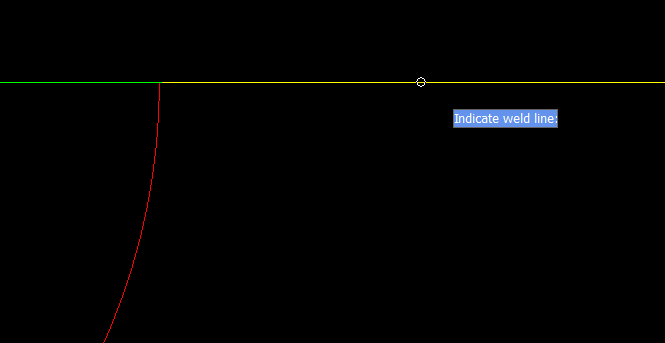

The user has the option to Split a weld line into several sections in case a segment of a weld line fails inspection. If the remaining section of a weld line is smaller than the split threshold after the user selects the new start and end points, then that remaining section is added to the nearest new weld line.

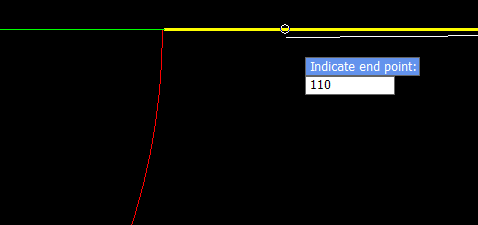

End point selection less than the length of the threshold from the weld line end

Weld line with remaining section less than the threshold value added to the nearest weld line

The split threshold can be set in the Weld Manager configuration by the system administrator.
