Structural Components

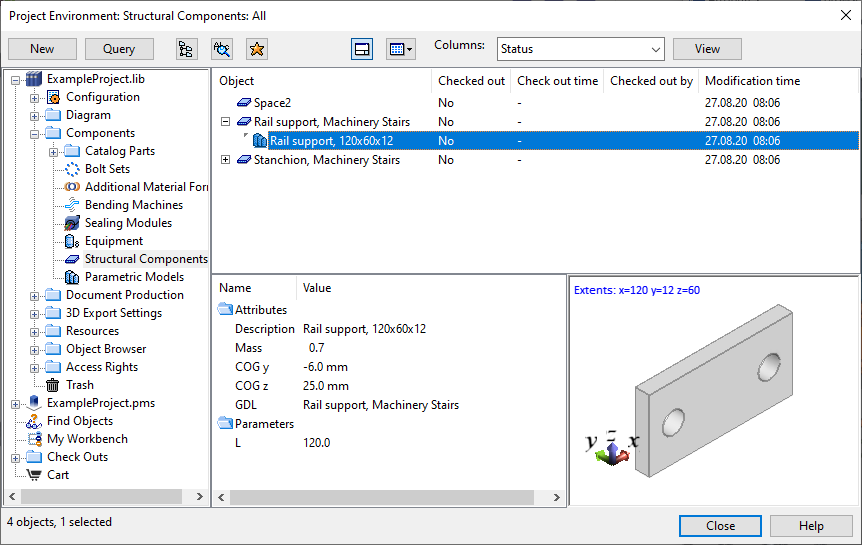

In the Project Environment dialog, in the Structural Components view you can manage objects that are mainly used to model buildings and supports for equipment.

For each structural component in the model the following data items are stored:

• Optional name up to 39 characters long
• Name of component model
• Location of the local origin
• Rotation matrix for orientation
