Flexible objects

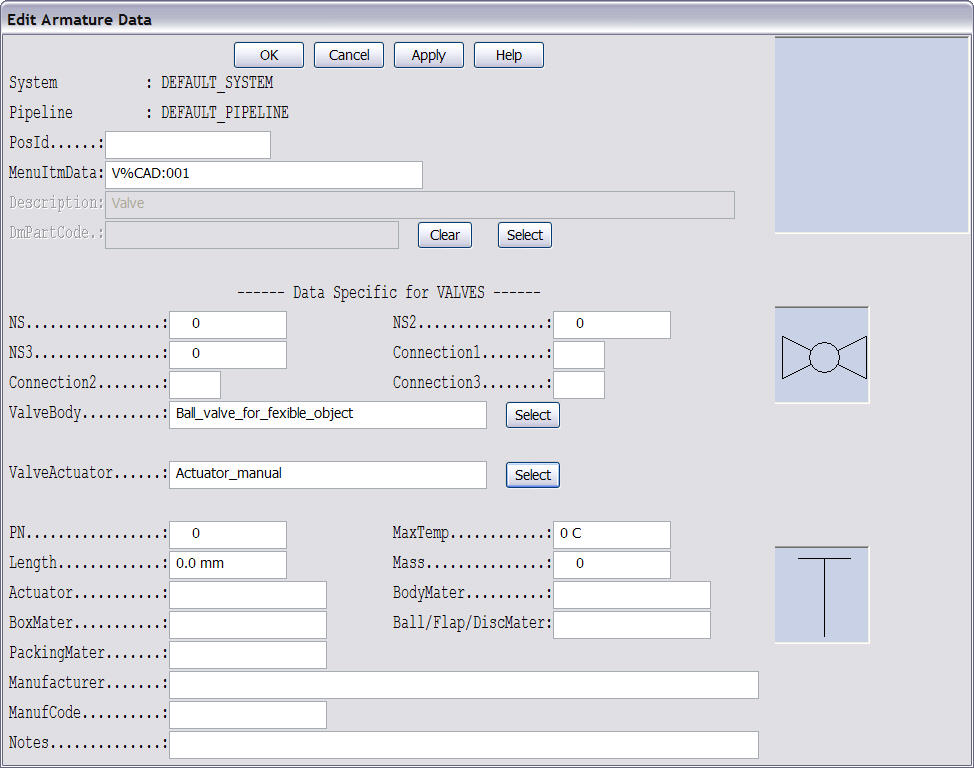

To use flexible objects in your project you have to make following actions. This example is for a flexible valve with a flexible actuator:

• Create a symbol for the flexible object template. This symbol has arguments. See Example 2D symbol for flexible objects.

• Add fields with the same name as symbol arguments to the VALVES table.

  Show/hide example



• Modify the symbols for the valve body and the actuator. These symbols don't have nodes.
