Header File

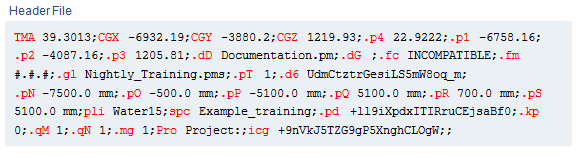

Also a header file named "tmplst.h" was created in design area folder …pm/docu during material list generation. In the following example all the tags are colored red in the header file.

The ICGD select the tags to be used in the header of the list or report. In this example tags "pli" and TMA are selected from the header file to the final listing (see the table /* PRINT HEADER FIELDS for listing */ in the ICGD).

Explanation of attribute abbreviations (tags):

• TMA, total mass.

• CGX, CGY and CGZ, coordinates x, y and z of center of gravity.

• .p4, mass of content.

• .p1, .p2, .p3, X, Y and Z coordinates of center of gravity.

• .dD, name of object; used when both name and description are needed.

• .dG, description.

• .fc, product version.

• .fm, product version maximum.

• .gl, name of parent project

• .pT, ID number.

• .d6, parent site.

• .pN, .pO, .pP, .pQ, .pR, .pS: bounding box coordinates.

• pli, name of object’s pipeline.

• spc, object’s specification.

• .pd, id of specification.

• .qM, use in Diagram (1=allow).

• .qN, use in Plant Modeller (1=allow).

• .kp, insulation requirement (0=no).

• .mg, use in Isometrics (1=allow).

• icg, ICGD id number to be used.
