Systems and Lines (Prior)

Normally, you should use the default Systems and Lines tool to manage the systems and lines of your project environment. However, also the legacy version of this tool can still be accessed by doing the following.

  1. Add the following environment variable to your %PMS_CONFDIR%/wsprofile/cadm_nt.prf file:

    SYSTEMS_AND_LINES_PRIOR;1;.

  2. Start Plant Modeller or P&ID.

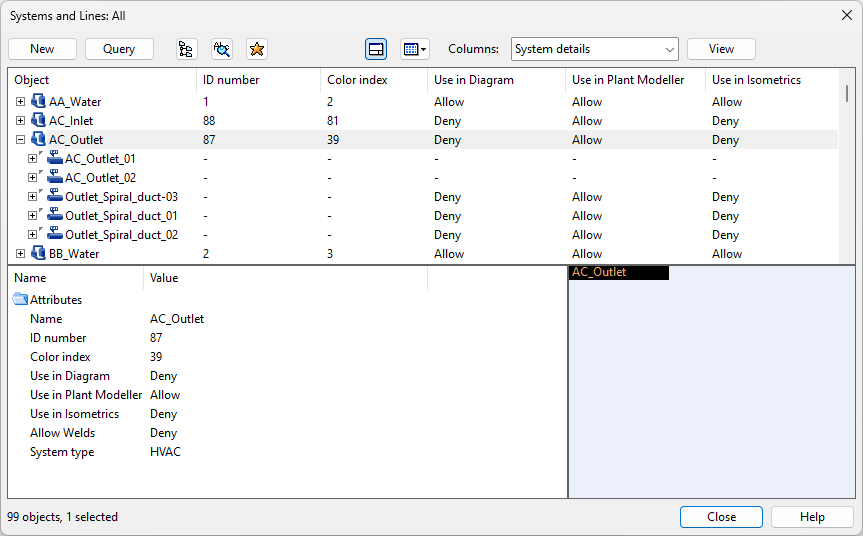

  3. Select File > Environment > Systems and Lines (Prior). The Systems and Lines dialog opens.
