Stub-in Plate

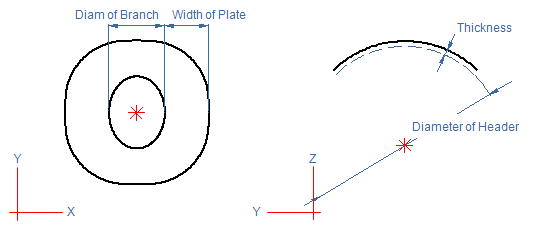

This shape creates a stub-in plate for stub-ins. The origin is located in the center line of the main pipe. The parameters are:

• Diam_of_Header, the diameter of the main pipe.

• Diam_of_Branch, the diameter of the branch.

• Width_of_Plate, the width of the plate.

• Thickness, the thickness of the plate.

Note: Thickness of plate is 0. Shape represents the outer surface of the stub-in plate and Thickness parameter is used to define the correct location of the outer surface. Inner surface is raised radially using Thickness parameter as the offset.
