Rescale

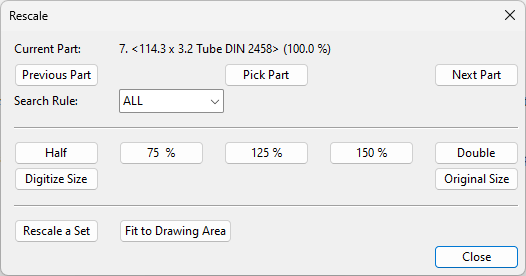

This command opens the Rescale dialog. Here, you can rescale an individual piping part by digitizing it from the view using the "Pick Part" button and defining the rescaling factor.

The active part is highlighted and the description of the part is shown as Current Part in the panel. When the rescale function is active, also the invisible parts are shown. The rescale factor can be defined either by buttons (Half, 75%, 125%, 150%, Double) or by digitizing.

The Original Size button restores the original rescale factor of the current part. Next Part / Previous Part searches for the next/previous active pipe part, using the Search Rule definitions. If you select the first part of a branch, the program prompts you for the following information:

• Which part do you want to rescale?

• Selected Part.

• Distance from Center Line.

• Branch Location on Main Run.
