User Interface

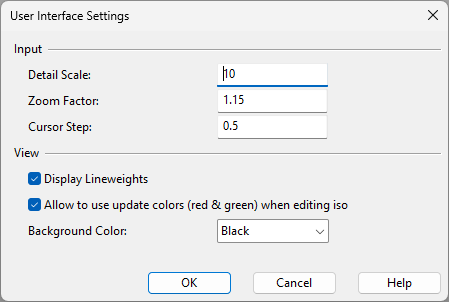

In the User Interface Settings dialog, you can define the following settings.

Input

• Detail Scale – Define the scale factor for the Zoom Detail command (shortcut key ') which can use during digitizing to zoom the view.

• Zoom Factor – Define the scale factor for the Zoom In and Zoom Out commands.

• Cursor Step – Define the step size for moving the cursor in the graphics window.

View

• Display Lineweights – Select this option to draw lines according to lineweight settings.

• Allow to use update colors (red & green) when editing iso – Select this option to use red and green color to indicate updates when editing an isometric.

• Background Color – Select the background color of the graphics window: Black, Gray, Blue gray, Dark gray, or White.
