Mirror Beam
You can mirror a beam across a plane that is located either at the center of the beam part or at its default routing reference point.
By center point

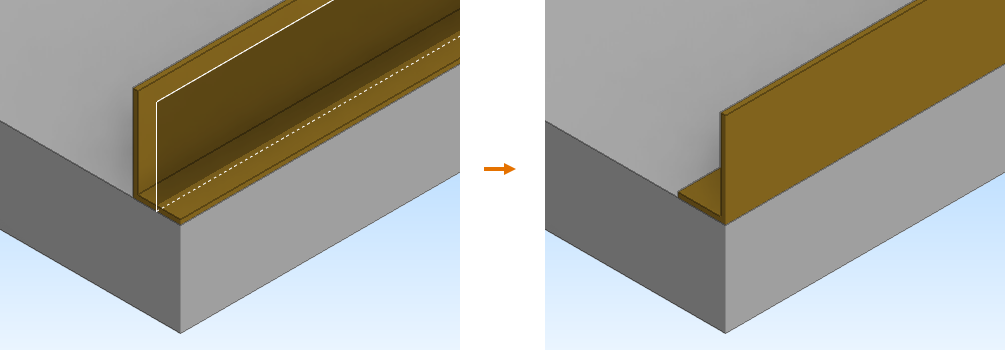

You can mirror a beam part across a horizontal or vertical mirror plane that is located at the center of the beam part.
Do the following:
-
On the Structural tab, in the Beam group, select Mirror Beam > By center point.
-
Select the beam part that you want to mirror and press Enter.
-

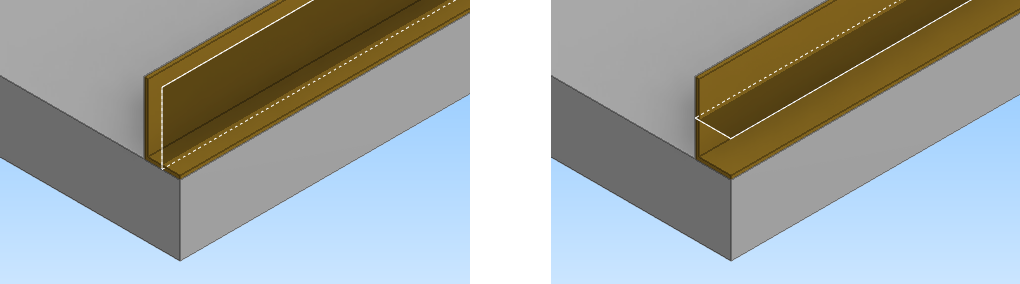

The beam part shows the mirror plane. You can press N to switch between vertical and horizontal mirror plane.
-
Press Enter to accept the mirror plane.
-
You can continue to mirror other beams in the same way or press Esc to exit the tool.
By routing point

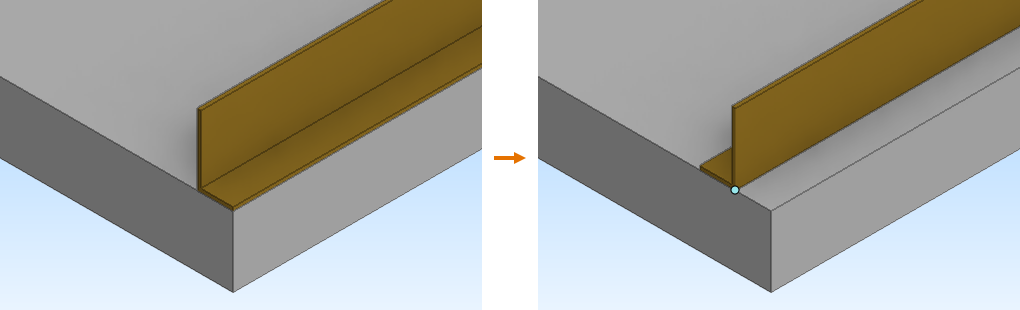

You can mirror a beam part across a plane that is located at the default routing reference point of the beam part, even if you selected a different routing reference point when routing the beam.
Do the following:
-
On the Structural tab, in the Beam group, select Mirror Beam > By routing point.
-
Select the beam part that you want to mirror and press Enter.
-
You can continue to mirror other beam parts in the same way or press Esc to exit the tool.
