Weld tab

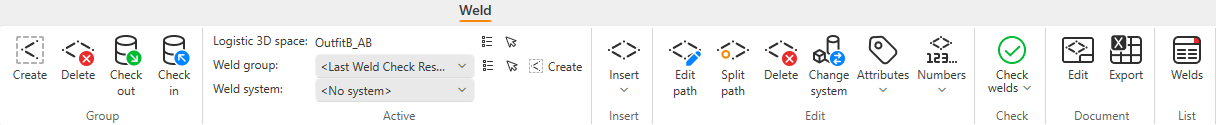

The Weld tab of Plant Modeller includes tools for managing welds and weld documents. This tab is only displayed if loading of welds into the model area is enabled in the Area properties.

The project administrator must define the shared project settings described in Weld Drawing and Welds.

Additionally, the project administrator must allow welds in the system configuration of the model objects to be welded. See Creating systems.

For detailed information about administering welds, see Administrating welds.

For a user-level tutorial, see Weld tutorial.
