Piping component templates
In the Project Environment dialog, [library] > Components > Catalog Parts > Geometry contains the following piping component templates. We recommend using these templates for creating new parts, when applicable. Their "Manufacturer" (maf) attribute is set to "CADMATIC", and you can list all of them by selecting either "Component templates" from the Hierarchy list or "CADMATIC Component Templates" from Favorites.
The templates are consistently designed to use the same name for the corresponding parameters. In Component Modeller, the parameters are illustrated in an image attached to the GDL. The templates also have service spaces, flow direction markings, and so on. Their dimension tables contain every size in the given standard, while their catalog parts are templates only and do not include specific information.
| Object | Component type | Geometry type | Dimensions |
|---|---|---|---|
|
Strainer, Y-type, Flanged |
Piping/Armature/instrument/Filter/strainer |
GT_VALVE |
|
|
Strainer, Y-type, Socket Weld |
Piping/Armature/instrument/Filter/strainer |
GT_VALVE |
|
|
Tee, Equal, BW |
Piping/Fitting/Branch/Tee |
GT_TEE |
|
|
Tee, Equal, int |
Piping/Fitting/Branch/Tee |
GT_TEE |
|
|
Tee, Equal, SW |
Piping/Fitting/Branch/Tee |
GT_TEE |
|
|

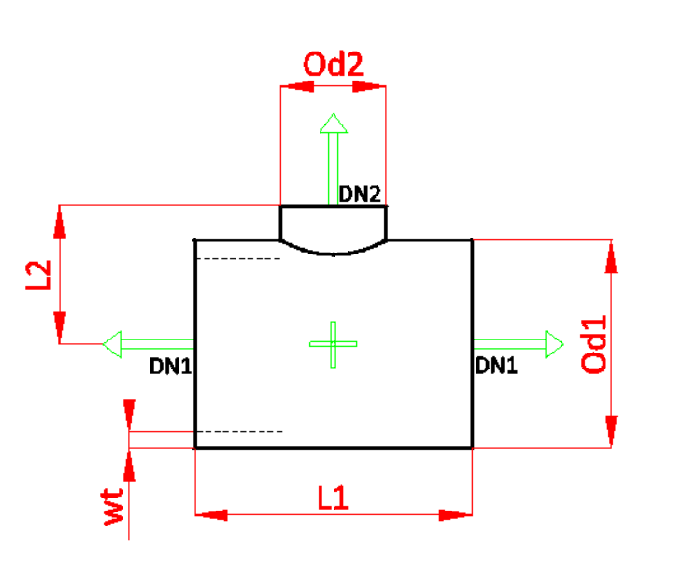

Tee, Reducing, BW |
Piping/Fitting/Branch/Tee |
GT_TEE |
|
|
Tee, Reducing, SW |
Piping/Fitting/Branch/Tee |
GT_TEE |
|
|
Cap, BW |
Piping/Fitting/Cap |
GT_2P |
|
|
Cap, int |
Piping/Fitting/Cap |
GT_2P |
|
|
Cap, SW |
Piping/Fitting/Cap |
GT_2P |
|
|
Plug, round head |
Piping/Fitting/Cap |
GT_2P |
|
|
Elbow 45, int |
Piping/Fitting/Elbow |
GT_FIXCURVE |
|
|
Elbow 45, SW |
Piping/Fitting/Elbow |
GT_FIXCURVE |
|
|
Elbow 90, int |
Piping/Fitting/Elbow |
GT_FIXCURVE |
|
|
Elbow 90, SW |
Piping/Fitting/Elbow |
GT_FIXCURVE |
|
|

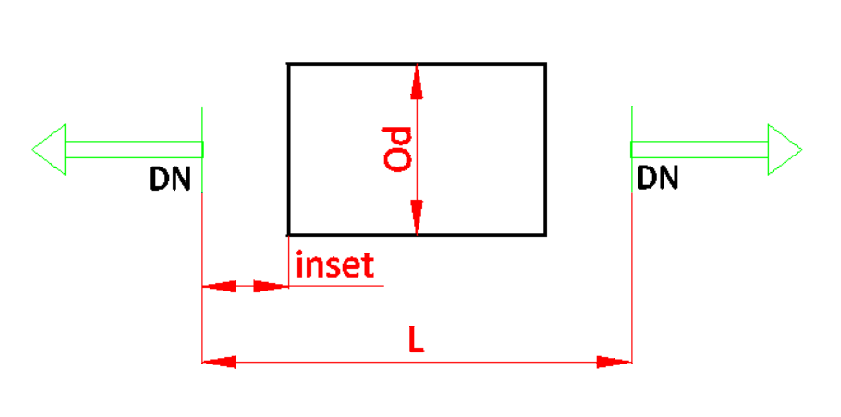

Barrel Nipple, Equal, ext |
Piping/Fitting/Nipple/coupling/Nipple |
GT_2P |
|
|
Swaged Nipple, Concentric, PE |
Piping/Fitting/Nipple/coupling/Nipple |
GT_2P |
|
|
Welding Nipple, Equal, ext - BW |
Piping/Fitting/Nipple/coupling/Nipple |
GT_2P |
|
|
Coupling, Equal, int |
Piping/Fitting/Nipple/coupling/Weld socket |
GT_2P |
|
|
Coupling, Equal, SW |
Piping/Fitting/Nipple/coupling/Weld socket |
GT_2P |
|
|
Sockolet |
Piping/Fitting/O-let/Weld-o-let |
GT_2P |
|
|
Weldolet |
Piping/Fitting/O-let/Weld-o-let |
GT_2P |
|
|
Blind & Spacer Paddle |
Piping/Flange/Blind |
GT_VALVE |
|
|
Flange, Blind |
Piping/Flange/Blind |
GT_2P |
|
|
Spectacle Blind |
Piping/Flange/Blind |
GT_VALVE |
|
|
Orifice Flange, 1/2" NPT |
Piping/Flange/Orifice |
GT_LATERAL |
|
|
Flange, Socket Weld |
Piping/Flange/Socket weld |
GT_2P |
|
|
Flange, Threaded |
Piping/Flange/Threaded |
GT_2P |
|
|
1-piece Ball Valve, ext - int, Lever |
Piping/Valve/damper/Ball |
GT_VALVE |
|
|
1-piece Ball Valve, ext - int, Lever |
Piping/Valve/damper/Ball |
GT_VALVE |
|
|
1-piece Ball Valve, Flange, Full Bore |
Piping/Valve/damper/Ball |
GT_VALVE |
|
|
1-piece Ball Valve, Flange, Reduced Bore |
Piping/Valve/damper/Ball |
GT_VALVE |
|
|
1-piece Ball Valve, int, Lever |
Piping/Valve/damper/Ball |
GT_VALVE |
|
|
1-piece Ball Valve, int, Lever |
Piping/Valve/damper/Ball |
GT_VALVE |
|
|
2-piece Ball Control Valve, Flange |
Piping/Valve/damper/Ball |
GT_VALVE |
|
|
2-piece Ball Valve, Flange, Gear |
Piping/Valve/damper/Ball |
GT_VALVE |
|
|
2-piece Ball Valve, Flange, Lever |
Piping/Valve/damper/Ball |
GT_VALVE |
|
|
2-piece Ball Valve, Gear 150-900# |
Piping/Valve/damper/Ball |
GT_VALVE |
|
|
2-piece Ball Valve, int, Lever |
Piping/Valve/damper/Ball |
GT_VALVE |
|
|
2-piece Ball Valve, int, Lever |
Piping/Valve/damper/Ball |
GT_VALVE |
|
|
3-piece Ball Valve, Buttweld, Lever |
Piping/Valve/damper/Ball |
GT_VALVE |
|
|
3-piece Ball Valve, Flange, Full Bore |
Piping/Valve/damper/Ball |
GT_VALVE |
|
|
3-piece Ball Valve, Flange, Gear, Full Bore |
Piping/Valve/damper/Ball |
GT_VALVE |
|
|
3-piece Ball Valve, Flange, Lever, Reduced Bore |
Piping/Valve/damper/Ball |
GT_VALVE |
|
|

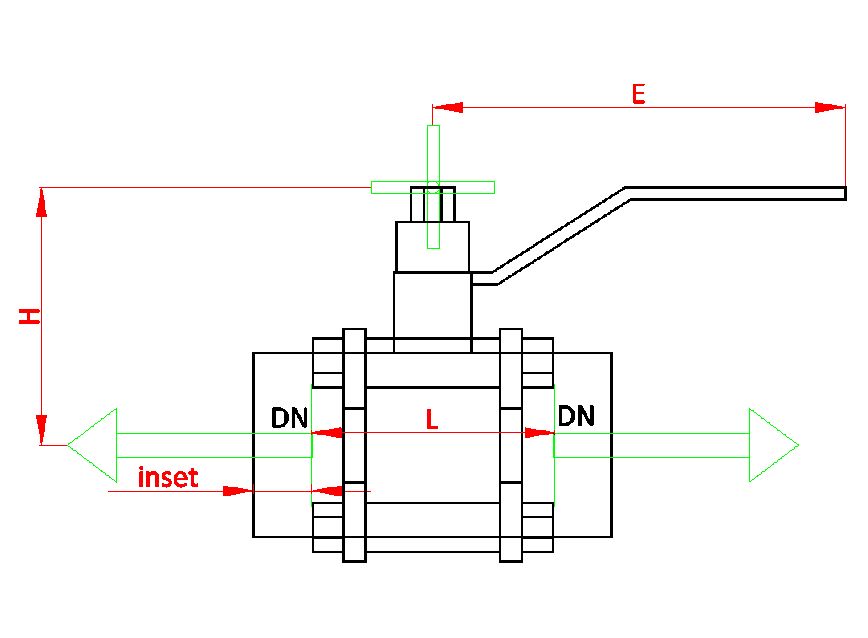

3-piece Ball Valve, Socket Weld |
Piping/Valve/damper/Ball |
GT_VALVE |
|
|
3-Way Ball Valve, Flange, Lever |
Piping/Valve/damper/Ball |
GT_TEE |
|
|
3-Way Ball Valve, Socket Weld, Lever |
Piping/Valve/damper/Ball |
GT_TEE |
|
|
Butterfly Control Valve, Flange |
Piping/Valve/damper/Butterfly |
GT_VALVE |
|
|
Butterfly Control Valve, Wafer |
Piping/Valve/damper/Butterfly |
GT_VALVE |
|
|

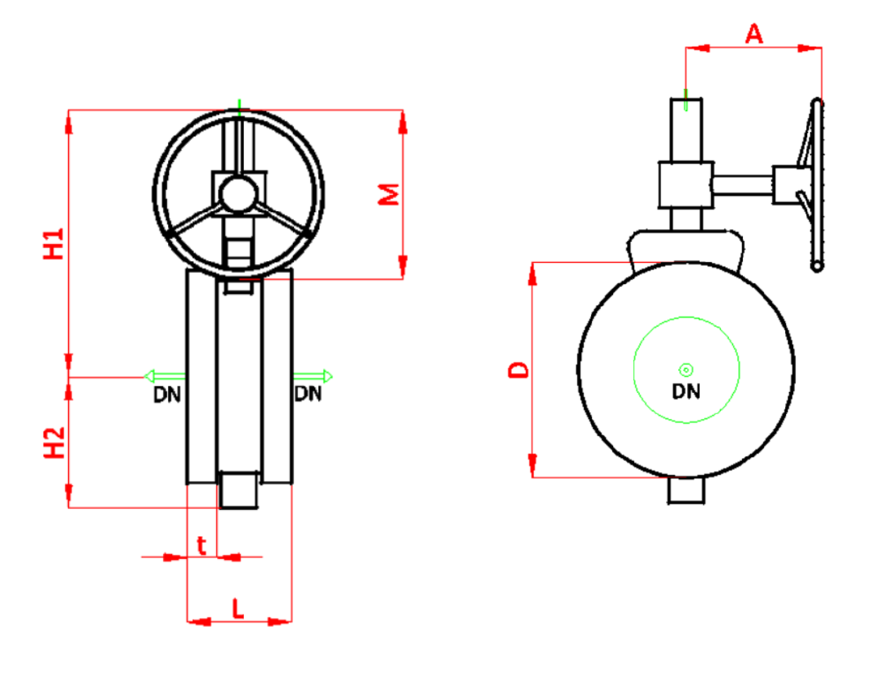

Butterfly Valve, Flange, Wheel |
Piping/Valve/damper/Butterfly |
GT_VALVE |
|
|
Butterfly Valve, Wafer & Lug, Lever |
Piping/Valve/damper/Butterfly |
GT_VALVE |
|
|
Butterfly Valve, Wafer & Lug, Wheel |
Piping/Valve/damper/Butterfly |
GT_VALVE |
|
|
Diaphragm Valve, Flange, Wheel |
Piping/Valve/damper/Diaphragm |
GT_VALVE |
|
|
Diaphragm Valve, int - int, Wheel |
Piping/Valve/damper/Diaphragm |
GT_VALVE |
|
|
3-Way Control Valve, Flange |
Piping/Valve/damper/Gate (slide/knife) |
GT_TEE |
|
|
Gate Valve, Buttweld, Wheel |
Piping/Valve/damper/Gate (slide/knife) |
GT_VALVE |
|
|
Gate Valve, Flange, Wheel |
Piping/Valve/damper/Gate (slide/knife) |
GT_VALVE |
|
|
Gate Valve, Flange, Wheel |
Piping/Valve/damper/Gate (slide/knife) |
GT_VALVE |
|
|
Gate Valve, Socket Weld, Wheel |
Piping/Valve/damper/Gate (slide/knife) |
GT_VALVE |
|
|
Angle Globe Valve, Flange, Wheel |
Piping/Valve/damper/Globe (seat/piston) |
GT_FIXCURVE |
|
|
Globe Control Valve, Flange |
Piping/Valve/damper/Globe (seat/piston) |
GT_VALVE |
|
|
Globe Valve, Buttweld, Gear |
Piping/Valve/damper/Globe (seat/piston) |
GT_VALVE |
|
|
Globe Valve, Buttweld, Gear |
Piping/Valve/damper/Globe (seat/piston) |
GT_VALVE |
|
|
Globe Valve, Buttweld, Wheel |
Piping/Valve/damper/Globe (seat/piston) |
GT_VALVE |
|
|

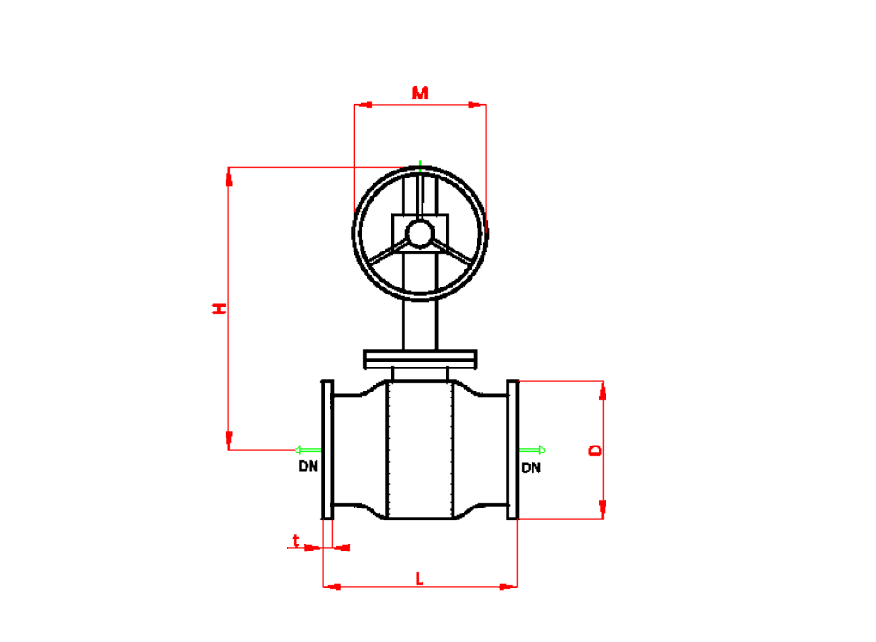

Globe Valve, Flange, Gear |
Piping/Valve/damper/Globe (seat/piston) |
GT_VALVE |
|
|
Globe Valve, Flange, Gear |
Piping/Valve/damper/Globe (seat/piston) |
GT_VALVE |
|
|
Globe Valve, Flange, Wheel |
Piping/Valve/damper/Globe (seat/piston) |
GT_VALVE |
|
|
Globe Valve, Socket Weld, Wheel |
Piping/Valve/damper/Globe (seat/piston) |
GT_VALVE |
|
|
Angle Needle Valve, ext - int, T-Lever |
Piping/Valve/damper/Needle |
GT_ASYMCURVE |
|
|
Angle Needle Valve, int - int, T-Lever |
Piping/Valve/damper/Needle |
GT_FIXCURVE |
|
|
Needle Valve, ext - ext, T-Lever |
Piping/Valve/damper/Needle |
GT_VALVE |
|
|
Needle Valve, ext - int, T-Lever |
Piping/Valve/damper/Needle |
GT_VALVE |
|
|
Needle Valve, int - int, T-Lever |
Piping/Valve/damper/Needle |
GT_VALVE |
|
|
4-way Control Valve, Buttweld |
Piping/Valve/damper/Other |
GT_CROSS |
|
|
4-way Control Valve, Flange |
Piping/Valve/damper/Other |
GT_CROSS |
|
|
4-way Control Valve, Socket Weld |
Piping/Valve/damper/Other |
GT_CROSS |
|
|
4-way Valve, Buttweld, Lever |
Piping/Valve/damper/Other |
GT_CROSS |
|
|
4-way Valve, Buttweld, Wheel |
Piping/Valve/damper/Other |
GT_CROSS |
|
|
4-way Valve, Flange, Wheel |
Piping/Valve/damper/Other |
GT_CROSS |
|
|

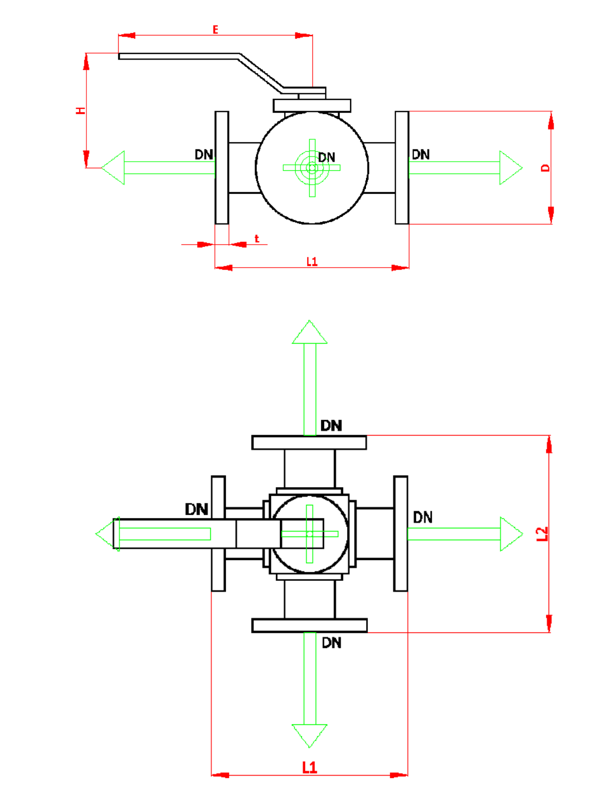

4-way Valve, Flange, Lever |
Piping/Valve/damper/Other |
GT_CROSS |
|
|
4-way Valve, Socket Weld, Lever |
Piping/Valve/damper/Other |
GT_CROSS |
|
|
4-way Valve, Socket Weld, Wheel |
Piping/Valve/damper/Other |
GT_CROSS |
|
|
Check Valve, Flange |
Piping/Valve/damper/Other |
GT_VALVE |
|
|
Check Valve, Socket Weld |
Piping/Valve/damper/Other |
GT_VALVE |
|
|
Pressure Relief Valve, ext - int |
Piping/Valve/damper/Other |
GT_ASYMCURVE |
|
|
Pressure Relief Valve, Flange |
Piping/Valve/damper/Other |
GT_ASYMCURVE |
|
|
Pressure Relief Valve, Flange - int |
Piping/Valve/damper/Other |
GT_ASYMCURVE |
|
|
Pressure Relief Valve, int - int |
Piping/Valve/damper/Other |
GT_ASYMCURVE |
|
|
Pressure Relief Valve, Reducing, ext - int |
Piping/Valve/damper/Other |
GT_ASYMCURVE |
|
|
Pressure Relief Valve, Reducing, Flange |
Piping/Valve/damper/Other |
GT_ASYMCURVE |
|
|
Pressure Relief Valve, Reducing, Flange - int |
Piping/Valve/damper/Other |
GT_ASYMCURVE |
|
|
Pressure Relief Valve, Reducing, int - int |
Piping/Valve/damper/Other |
GT_ASYMCURVE |
|
|

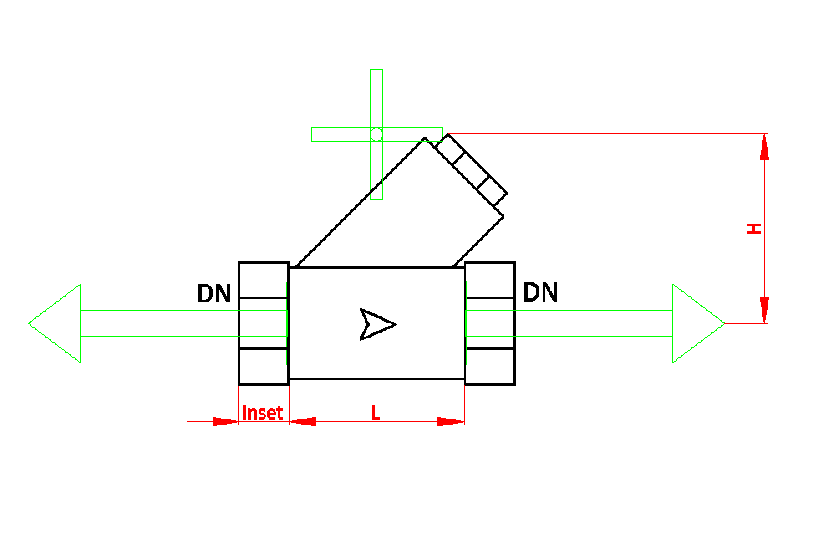

Y-Type Check Valve, int - int |
Piping/Valve/damper/Other |
GT_VALVE |
|
|
Y-Type Check Valve, int - int |
Piping/Valve/damper/Other |
GT_VALVE |
|
|
Plug Valve, Buttweld, Lever |
Piping/Valve/damper/Plug |
GT_VALVE |
|
|
Plug Valve, Flange, Lever |
Piping/Valve/damper/Plug |
GT_VALVE |
|
|
Plug Valve, Flange, Wheel |
Piping/Valve/damper/Plug |
GT_VALVE |
|
|
Plug Valve, int - int, Lever |
Piping/Valve/damper/Plug |
GT_VALVE |
|
