Circular platform

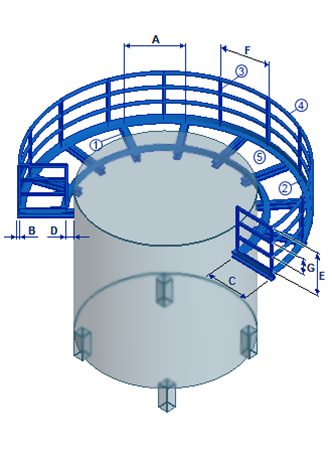

Construction settings

  • Material for radial supports (1)

    Valid beam classes for radial supports: I, L

  • Material for bent girders (2)

    Valid beam class for bent grinders: L

  • Material for railing posts (3)

    Valid beam class for railing posts: L

  • Material for bent hand rails (4)

    Valid beam class for bent hand rails: L

  • Material for grating (5)

  • Maximum linear distance between radial supports at outer surface of grating (A)

  • Radial support exceeding from outer surface of girder (B)

  • Grating width (C)

  • Free distance from girder to surface of vessel (D)

  • Handrail height from top of grating (E)

  • Maximum linear distance between posts (F)

  • Maximum free gap between rails (G)

Inserting the unit

  1. Select the System.

  2. Select points and directions.

  3. Enter a name for the structural unit.
