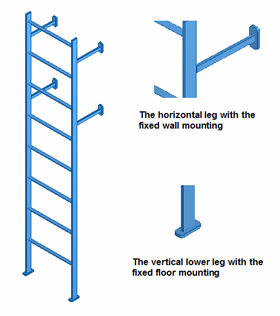

Ladder, basic, fixed legs, lower legs vertical

Construction settings

  • Flat bar for stringers (1)

  • SQ bar for rungs (2)

  • Flat bar for legs (3)

  • Doubling plate part a standard component) for mounting the legs to the wall (4)

  • Rise height (vertical distance between the center lines of rungs) (A)

  • Rung width (B)

  • Max. height of the lowest rung from the floor level (C)

  • Distance from the wall to the center line of the stringers (D)

  • Max. vertical distance between the leg center lines (E)

  • Max. vertical distance from the upper ends of the stringers to the center line of the nearest leg (F)

  • Vertical distance from the center line of the lowest rung to the lower ends of the stringers (G)

  • Vertical distance from the center line of the highest rung to the higher ends of the stringers (H)

Inserting the unit

  1. Select system

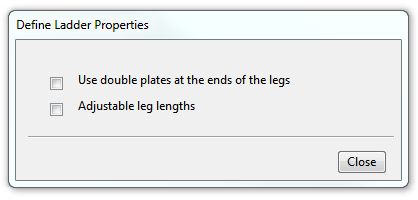

  2. Select properties

    Use double plates at the ends of the legs automatically sets double plates to the end of the legs.

    Adjustable leg lengths enables user to manually define the length for each leg.

  3. Select points and directions

  4. Select name for the structural unit
