Ladder, caged, TM

Construction settings

  • Material for stringers (1)

    Valid beam classes for stringers: RHS, Flat

  • Material for rungs (2)

    Valid beam classes for rungs: SQ, Polygon

  • Material for legs (3)

    Valid beam classes for legs: L, RHS, Flat

  • Material for cage hoops (4)

    Valid beam classes for cage hoops: RHS, Flat

  • Material for cage bars (5)

    Valid beam classes for cage bars: RHS, Flat

  • Minimum platform height to require safety cage

    If the height from lower platform to upper platform exceeds the minimum platform height to require safety cage then safety cage is modeled. Otherwise, ladder is modeled without safety cage.

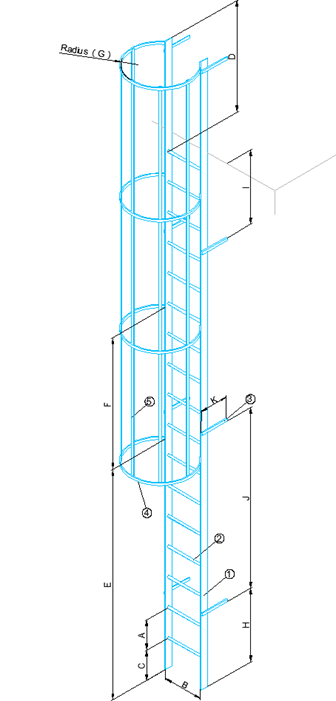

  • Rung height (A)

  • Rung width (B)

  • Max. height of the lowest rung (C)

  • Max. distance from the axis of the highest rung to the higher end of the stringers (D)

  • Distance from the lower end of stringers to safety cage's lowest hoop (E)

  • Maximum spacing between hoops (F)

  • Hoop radius (G)

  • First leg distance from the lower platform (H)

  • Last leg distance from the upper platform (I)

  • Maximum spacing between legs (J)

  • Leg depth (K)

Inserting the unit

  1. Select system

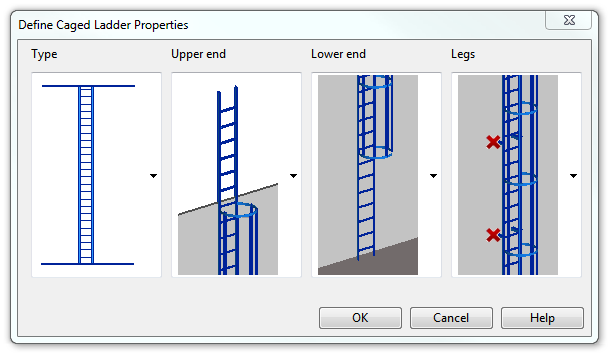

  2. Select properties

    Type can be single or staggered ladder. Maximum height for single ladder is 10m and for staggered ladder 6m.

    Upper end and Lower end can be to the left, right or center.

    Legs choices are no legs, legs to the platform level of legs or legs to the end of the stringers.

  3. Select points and directions.

  4. Select height above the platform.

    Use the predefined value or digitize the height to use a custom value.

  5. Select name for the structural unit.
