Railing, type 2

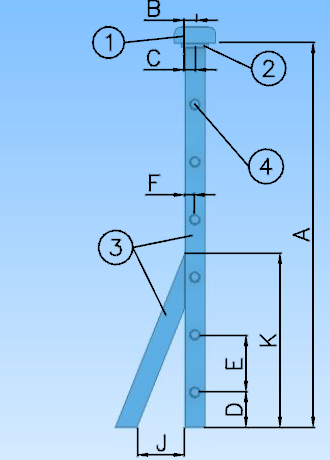

Construction settings

  • Pipeline and piping specification for the railing

  • Profile material for handrails (1)

    Valid types: Flat bar, square and rectangular cross sections.

  • Profile material for support beams (2)

    Valid types: Flat bar, square and rectangular cross sections.

  • Material for stanchions (3)

  • Handrail height (A)

  • Handrail offset (B)

  • Support beam offset (C)

  • DN of knee rail (4)

  • Bending radius for knee rail pipes if free radius bends are used

  • Number of knee rails

  • Knee rail height (D)

  • Spacing for knee rails (E)

  • Knee rail offset (F)

  • Stanchion distance from the corner

  • Maximum distance between stanchions

  • Diagonal offset (J)

  • Diagonal height (K)

Inserting the unit

  1. Select the System.

  2. Select the corner points.

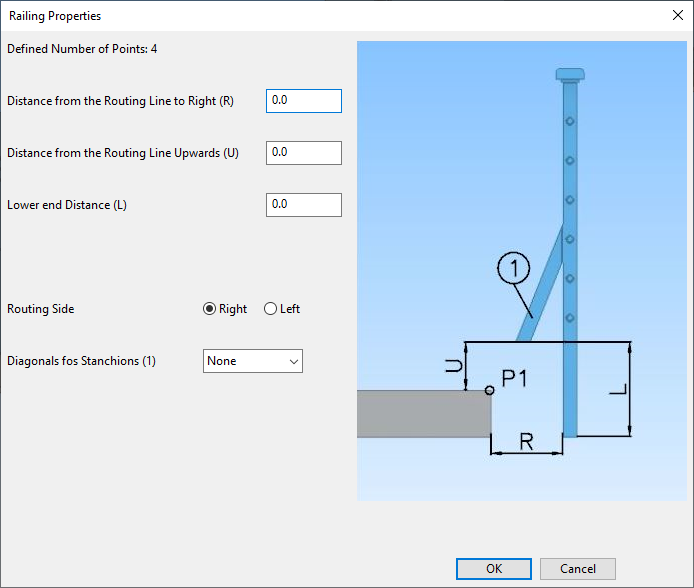

  3. Define the properties.

  4. Enter a name for the structural unit.
