Railing, type 3

Construction settings

  • Name

  • Description

  • Generate proposal for group name

    Generated group name can consist of the elements <text>.<Plant Modeller area ID>.<ordinal number> where the "<text>" can be freely defined.

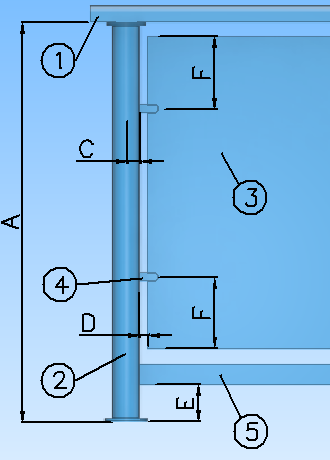

  • Material for handrail profile (1)

    Valid profile types: Flat bar, square and rectangular cross sections

  • Material for stanchions (2)

  • Material for panels (3)

  • Material for fasteners (4)

  • Material for support beam (5)

    Valid profile types: Flat bar, square and rectangular cross sections

  • Handrail height (A)

  • Handrail offset (B)

  • Fastener offset (C)

  • Panel offset (D)

  • Support beam height (E)

  • Fastener distance from the corner (F)

  • Max distance between stanchions

Inserting the unit

  1. Select the System.

  2. Select the corner points, and then press Enter.

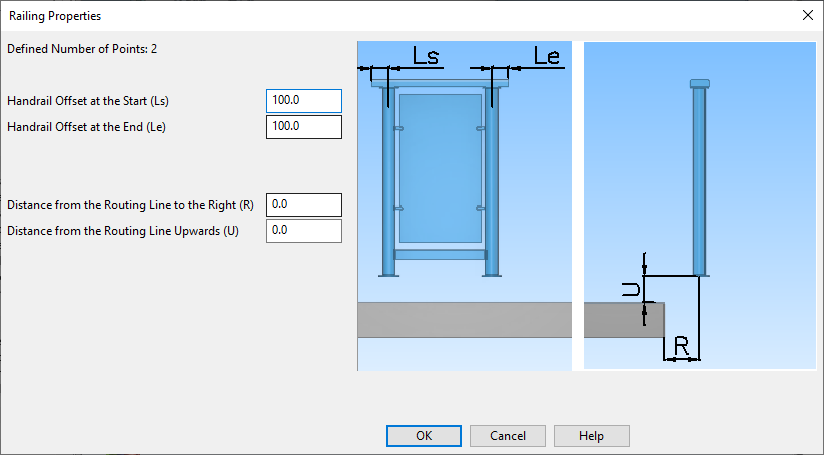

  3. Define the properties, and then click OK.

  4. Enter a name for the structural unit, and then click OK.
