Cable tray specifications

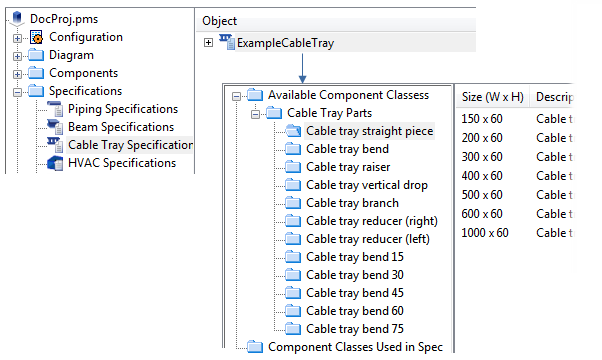

Cable tray routing is specification driven. Cable tray specification includes parts for cable tray routing. Cable tray specifications are handled the same way as piping specifications. Specification editor now checks that angle to which the functional description is intended for is implemented by the parts that are added to these functional descriptions. So, if you select functional description for 45 degree bend then the geometry must match this.

Note: If you need for example two different cable tray bends, you have to make two separate cable tray specifications.
