Format control file for pipeline material list

/* Format control file for Pipeline material list. */

Pages

p PAGE  55 80 1 1 0

/* number of lines, page width, empty lines at top, empty lines at bottom, empty chars in right margin */

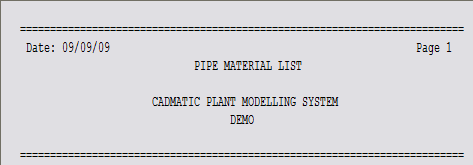

Fields at the top

f T1 0 0 0 0 1  4 ==================================================

/* output in every page (f1=0), normal printing (f2=0), not underlined (f3=0), print field (f4=0), line one is the start line on the page (f5=1), printing starts at column four (f6=4), output is = (f7) */

f DTM    0 0 0 0 2  5 Date: %s

/* field is outputted in every page (f1=0), normal printing (f2=0), not underlined (f3=0), print field (f4=0), field starts at line two on the page (f5=2), printing starts at column five (f6=5), output is date (f7) */

f T3 0 0 0 0 3 33 PIPE MATERIAL LIST

f PAGE_N 0 0 0 0 2 70 Page %d

f T4     0 0 0 0 5 26 CADMATIC PLANT MODELLING SYSTEM

f T5     0 0 0 0 6 39 DEMO

f T6 0 0 0 0 8  4 ==================================================

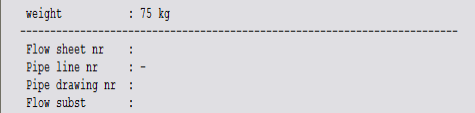

Fields at the bottom

f TMA    3 0 0 0 57 5 weight           : %s kg

f T8     4 0 0 0 58 4 --------------------------------------------------

f snr    4 0 0 0 59 5 Flow sheet nr    : %s

f lin    4 0 0 0 60 5 Pipe line nr     : %s

f dra    4 0 0 0 61 5 Pipe drawing nr  : %s

f sub    4 0 0 0 62 5 Flow subst       : %s

Fields / headers for the records

r LINE   1 1 0 1 1 0 0

f O11 0 0 0 0 1  5 Item

f O12    0 0 0 0 1 29 Measures and

f O13 0 0 0 0 1 46 Material

f O14 0 0 0 0 1 58 Standard

f O15 0 0 0 0 1 70 pieces/

f O21 0 0 0 0 2 29 Models

f O22 0 0 0 0 2 70 quantity

f O41 0 0 0 0 3  4 -------------------------------------------------

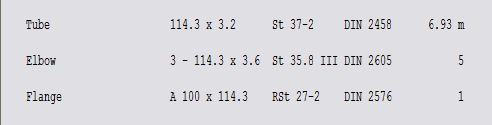

Elements

e DE      5 23 0 0 0 %s

/* abbreviation of the attribute = tag DE, normal printing (f2=0), not underlined (f3=0), print field (f4=0), line one is the start line on the page (f5=1), printing starts at column four (f6=4), output is = (f7) */

e DD     29 16 0 0 0 %s

e MC     46 11 0 0 0 %s

e ST     58 11 0 0 0 %s

e tot    70  8 0 0 0 %8s
