Isometric Drawing Symbols

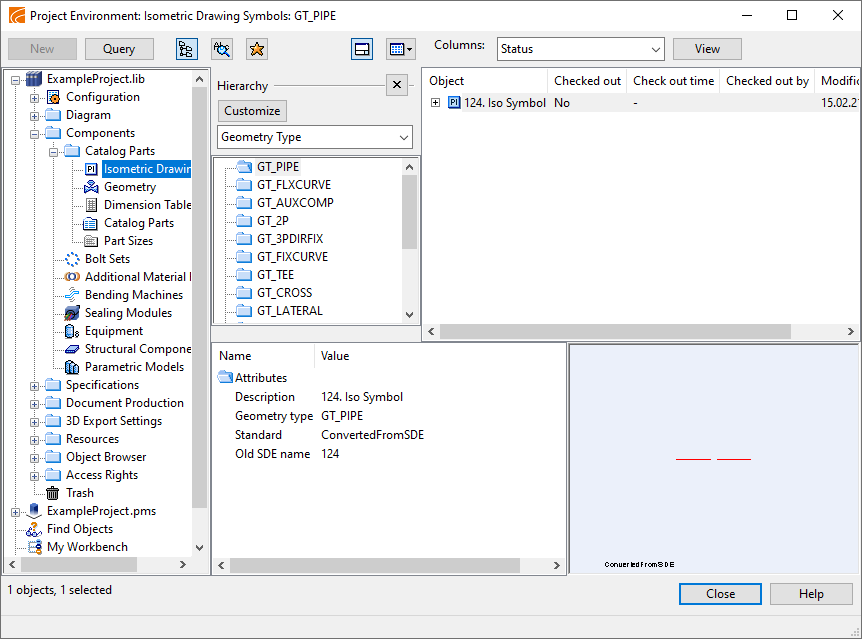

In the Project Environment dialog, [library or project] > Components > Catalog Parts > Isometric Drawing Symbols lists the available isometric drawing symbols and allows creating new ones. The symbols are listed according to their Geometry Type.
An isometric drawing symbol is a symbol that can be drawn in isometric drawings if the component is allowed to be exported to isometric drawings. The symbol is normally selected in the Dimension Table, but it is also possible to rewrite it in the Catalog Part.
The symbols are fixed for the following components:
|
Symbol |
Geometry type |
Description |
|
|---|---|---|---|
|
Pipe |
1 |
DM_GT_PIPE |
Straight pipe parts |
|
Elbow |
2 |
DM_GT_FLXCURVE |
Elbows or bends |
|
Return pipe |
12 |
DM_GT_RETURN |
Return pipes |
|
Y piece |
13 |
DM_GT_YPIECE |
Y-pieces |
|
No iso symbol |
15 |
DM_GT_FLEXCOMP |
Invisible connection components |
