Using an attribute to link to a dimensional drawing

You can link a dimensional drawing to the GDL model by defining the location of the drawing in an attribute.

  • Select the attribute meant for the dimensional drawing (for example, "file") from the attribute list.

    The attribute's type must be String and it must be assigned at least to the object type "GDL for Equipment".

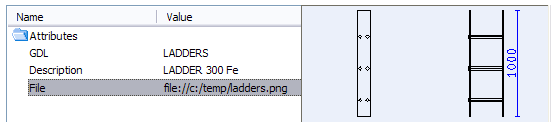

  • Write the value for the attribute in the format: file://folder/file

  • To open the dimensional drawing, double-click that attribute in the detail window of the object browser.
