Box

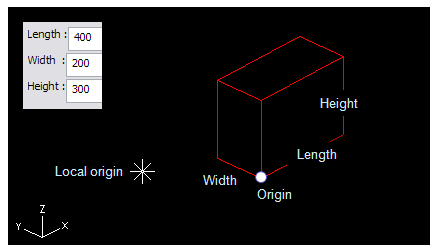

A box primitive is defined by:

• Origin point. If the dimensions of the box are positive values the origin is located at the right lower corner at the front. If the dimensions are negative values the origin is located at the left upper corner at the back.

• Dimension the box, length is according to the y-axis, width is according to the x-axis and height is according to the z-axis.



To edit the dimensions of the box click Edit Dims, or click Lengthen to lengthen the box sides or the diagonal. If you modify the diagonal, any prior parameterization of side lengths will be lost. You can't parameterize the length of the diagonal.

Action points are located at the origin and at center points of edges starting from the origin.
