Circular to Rectangular Transition Piece

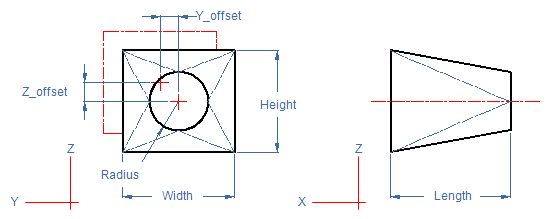

This shape creates a transition piece where the cross-section begins as a circle but ends as a rectangle. The local origin of the shape is at the center of the circle. The parameters are:

• Radius, the radius of the circle end.

• Width, the width of the rectangular end.

• Height, the height of the rectangular end.

• Length, the length of the component.

• Y_offset and Z_offset, the center of the rectangle end is offset from the x-axis as specified by parameters Y_offset and Z_offset.

Note: If the values of Y_offset and Z_offset (both) are 0, the component is concentric. Otherwise the transition piece is eccentric. Offset values can be negative for opposite direction.
