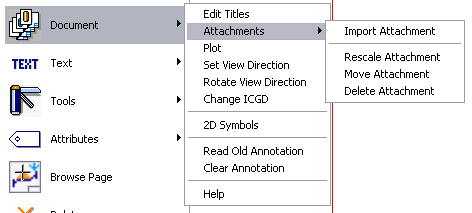

Document

Edit Titles

This command allows user to edit the fields of the title block. Usually title block is filled automatically.

Attachments

2D drafting or 3D view can be attached in Plant Modeller to the geometry. The drafting is stored in a separate file (currently a DXF file). Pipe loads automatically this file when the corresponding geometry is loaded.

The "Attachments" menu provides tools to manipulate this imported 2D:

• Rescale

• Move

• Delete

Plot

Plots the current isometric or spool drawing according to Printer Preselection for Sheet.

Set & Rotate View Direction

With "Set View Direction" user can define the view direction of isometric. Also it is possible to rotate the isometric drawing.

Change ICGD

This command can be used for activating another ICGD among the ICGDs in the project.

2D Symbols

This command allows the user to edit an existing symbol or add a new one.

Read Old Annotation

If the drawing of the active geometry has been saved previously it can be retrieved by selecting "Read old picture". The saved drawing is activated for updating.

Clear Annotation

If the drawing has been saved previously it can be retrieved by selecting "Read old picture".
